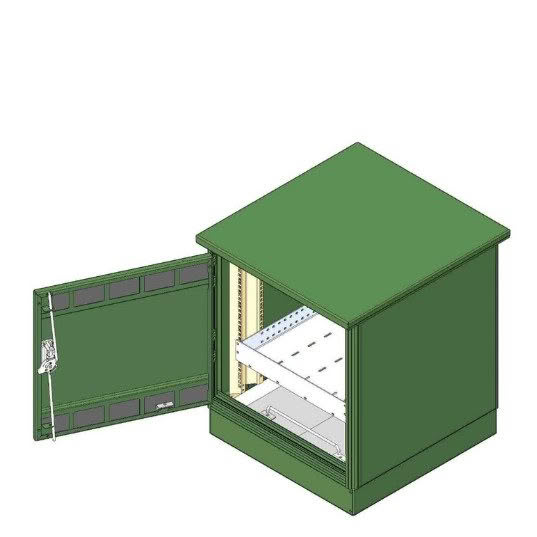

Single-bay, 2-door outdoor cabinet (650W × 650D × 750H) with front and rear access, 19″ mounting frame, vented door louvres, flush front locking, and a captivated battery shelf for secure equipment support.
| Width | 650 |
|---|---|
| Depth | 650 |
| Height | 750 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
Single-bay, 2-door outdoor cabinet (650W × 650D × 750H) designed for telecommunications, power, and infrastructure applications requiring compact footprint with full front and rear access.
This cabinet features a front and rear door configuration, allowing efficient installation, cable management, and maintenance access from both sides—particularly useful for equipment separation and service workflows. Internally, it is fitted with a 19″ mounting frame, providing a standardised structure for mounting active equipment, power systems, and communication devices.
The enclosure incorporates vented door louvres, supporting natural convection airflow to assist with passive cooling, reducing reliance on powered thermal systems. A captivated battery shelf is included, securely integrated within the cabinet to support battery storage while maintaining stability during transport and operation.
Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is engineered for durability in outdoor environments, with protection levels available up to IP66 depending on configuration.
The flush front locking system ensures secure, low-profile access while maintaining a clean external appearance, suitable for public or roadside installations.
