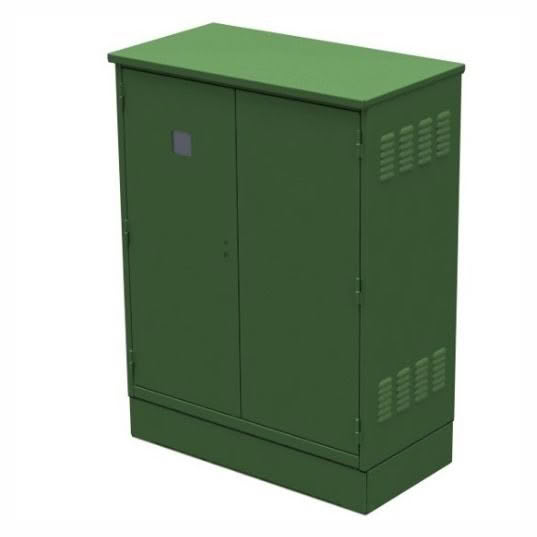

The cabinet features two plain front doors, providing a clean and unobstructed front profile for secure access and easy visual inspection through the meter window. Ventilation is achieved through side-mounted louvres, enabling effective natural convection airflow.

Security is enhanced with recessed graffiti-safe locking systems, offering a low-profile, tamper-resistant solution suitable for public and roadside environments. The enclosure is supported by a polypropylene base, delivering corrosion resistance and practical cable management.

Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is engineered for long-term durability in harsh outdoor conditions, with ingress protection up to IP66 depending on configuration.

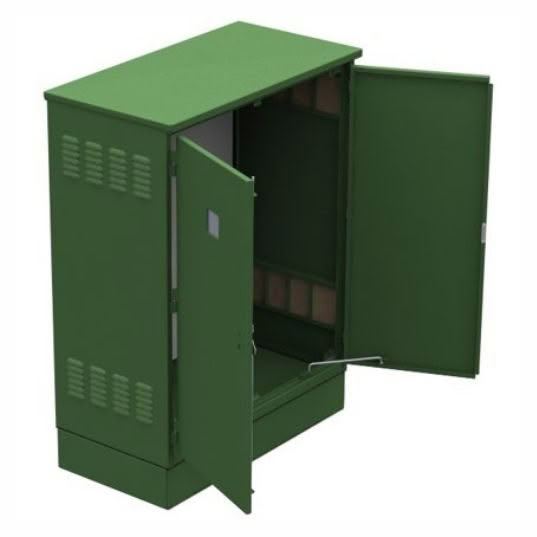

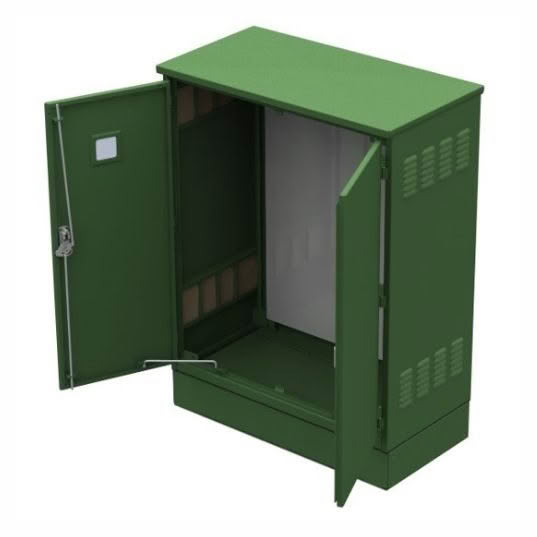

The double-bay layout provides increased internal capacity for flexible equipment arrangement and efficient installation. Optional 150 mm aluminium plinth is available to improve cable entry access and elevate the cabinet above ground level. Gland plates can also be included to support secure and organised cable entry.

This configuration is ideal for installations requiring clean front access, vandal resistance, and passive side ventilation, while maintaining flexibility for site-specific mounting and cable management requirements.
