The single-bay, 2-door cabinet (650W × 750D × 1432H) is a durable outdoor enclosure designed for telecommunications, utilities, and infrastructure applications. With a 27RU capacity, it provides flexible internal space for housing active equipment, power systems, and monitoring devices across a wide range of site installations.
Manufactured from 2.5 mm marine-grade aluminium and finished with UV-resistant powder coating, the cabinet is engineered for long service life in harsh outdoor environments, including coastal and high-exposure locations. The robust construction is supported by secure flush-front locking and a three-point locking system, ensuring both equipment protection and site security.
Thermal performance is managed through natural convection ventilation, using a vented door design to maintain airflow without relying on powered cooling. This makes the cabinet suitable for installations where simplicity, reliability, and low maintenance are essential.

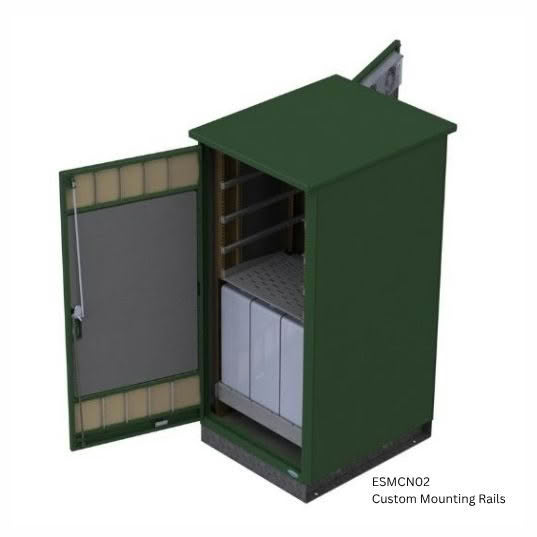

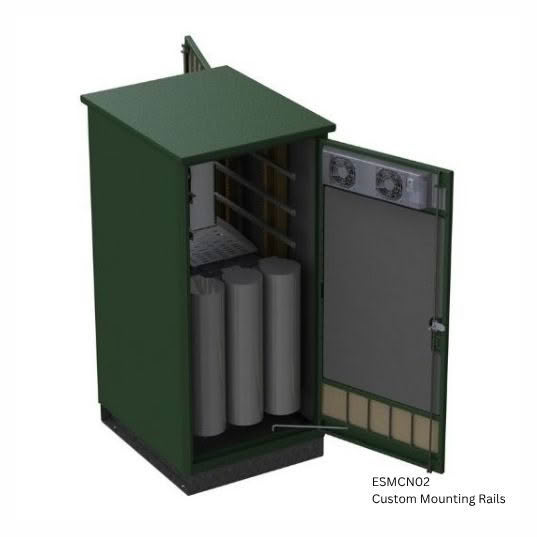

The cabinet supports standard 19″ equipment mounting and offers flexibility in internal configuration. The same cabinet size can be supplied with configurable hardware, including custom mounting rails for battery (ESMCN02), allowing adaptation to specific equipment layouts. Additional configuration options—such as alternative locking systems, internal trays, cable management, plinth mounting, and enhanced heat management solutions—can also be accommodated to meet project-specific requirements.
Designed for adaptability and performance, this enclosure provides a reliable solution for outdoor deployments where durability, security, and flexible configuration are critical.
