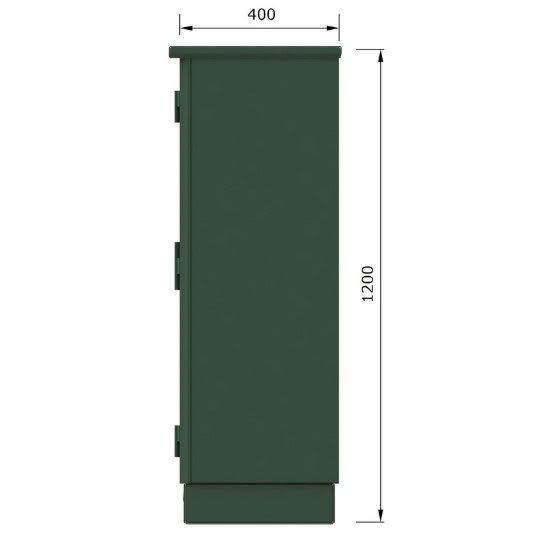

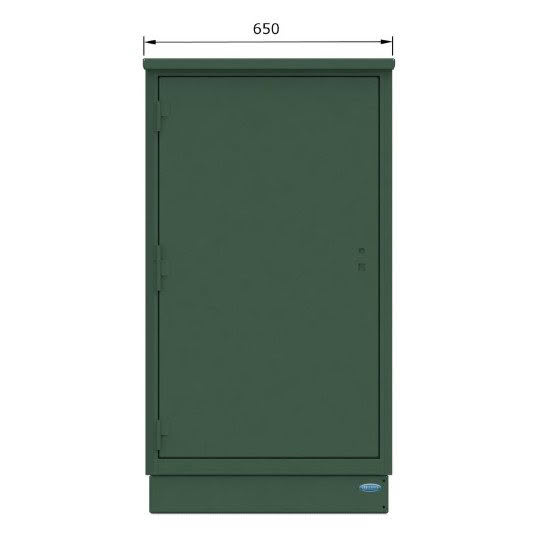

This single door cabinet (650W x 400D x 1200H), 22RU, is designed for secure and efficient housing of electrical and telecommunications equipment in outdoor environments. Compact in footprint, it is well suited for installations where space is limited while still requiring structured 19″ equipment mounting.

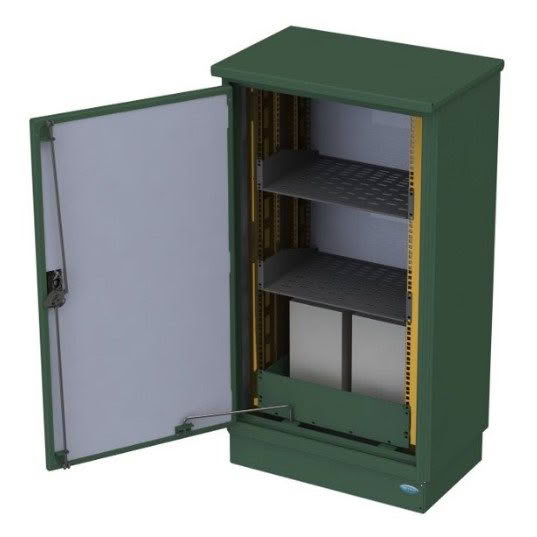

The cabinet is fitted with standard 19″ mounting rails, allowing integration of a wide range of industry-standard equipment. A natural convection ventilation system enables passive airflow through the enclosure, supporting heat dissipation without the need for powered cooling—ideal for low to moderate heat load applications.
A flush locking system provides secure access while maintaining a clean external profile, reducing exposure to tampering and environmental impact. The cabinet is built for durability in outdoor conditions, consistent with long-life enclosure construction used across infrastructure sectors.
Optional insulation is available to enhance thermal stability, helping to reduce internal temperature fluctuation caused by external environmental changes. An optional 100mm aluminium plinth is also available, elevating the cabinet for improved cable entry, moisture protection, and simplified on-site installation.
Suitable for telecommunications, utilities, and monitoring systems, this cabinet offers a practical, space-efficient solution combining passive cooling, secure access, and flexible installation options.
