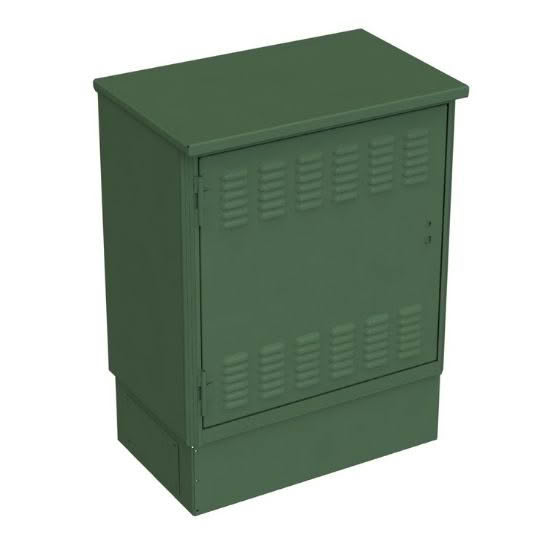

This single door outdoor custom cabinet (750W × 450D × 1000H) is designed for telecommunications and infrastructure applications requiring compact equipment housing with flexible access. With a 17RU single-bay configuration, it supports standard 19″ rack-mounted equipment, making it suitable for a wide range of network and control installations.

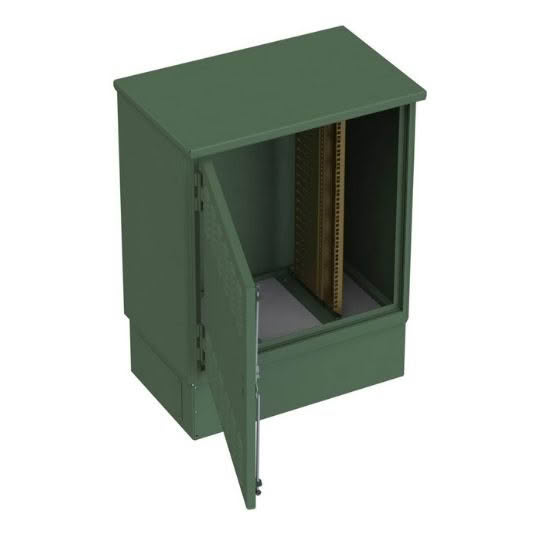

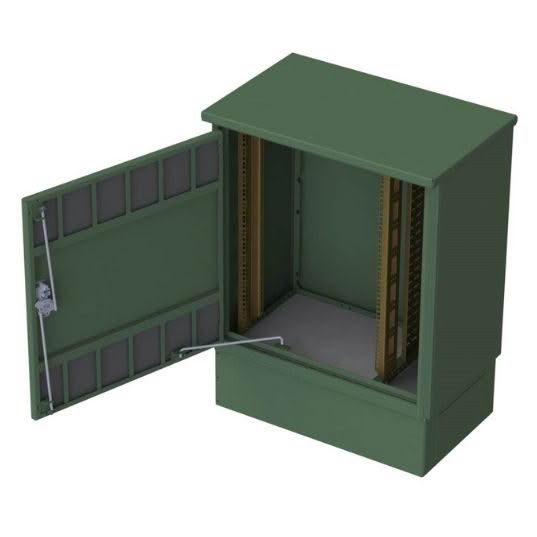

A key feature of this cabinet is its configurable door opening direction, allowing customers to select either right-hand opening (ESNS04) or left-hand opening (ESNS05). This flexibility enables easier installation and maintenance in sites with space constraints or specific access requirements.

The cabinet utilises natural convection ventilation, providing passive airflow to manage internal temperatures without the need for powered cooling. This supports energy-efficient operation in applications with moderate heat loads.

Security is ensured through a flush front locking system with three-point locking, delivering a clean external appearance and reliable protection for internal equipment.

For installation flexibility, the cabinet can be supplied with an optional 200 mm aluminium plinth, offering improved cable entry management, elevated ground clearance, and protection from moisture and environmental exposure.

Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is engineered for long-term durability in harsh outdoor environments. It supports high ingress protection (up to IP66 depending on configuration), ensuring reliable protection against dust and water ingress.
