A versatile outdoor cabinet designed for telecommunications, electrical, and control applications.
Featuring a 19″ mounting system, front and rear access doors, flush-front locking, and forced convection ventilation with dual cooling fans.
Available with an optional thermostat, insulation, and 100mm aluminium plinth to suit a wide range of infrastructure environments.
| Width | 750 |
|---|---|
| Depth | 650 |
| Height | 1430 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |

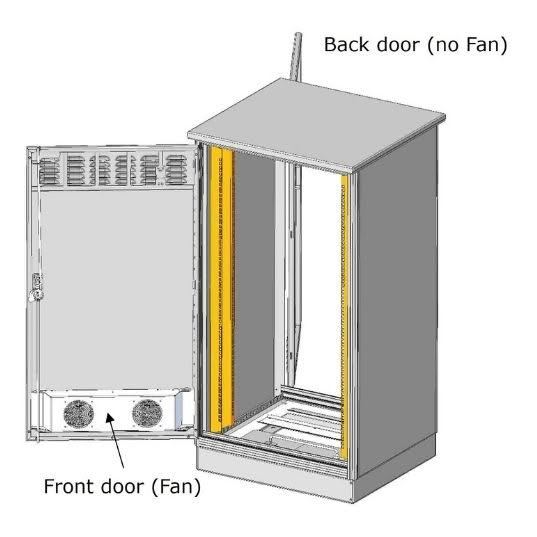

The Single Bay 2-Door Cabinet provides a secure and reliable enclosure solution for outdoor telecommunications, networking, control, and electrical equipment installations. Designed with front and rear access doors, the cabinet offers excellent accessibility for equipment installation, maintenance, and cable management.
The cabinet incorporates a standard 19″ mounting system, making it suitable for a wide range of active and passive equipment. To support thermal management in outdoor environments, the enclosure is fitted with a forced convection ventilation system featuring two cooling fans, helping maintain airflow and reduce internal heat build-up. An optional thermostat is available to automatically control fan operation and optimise energy efficiency.
Security and aesthetics are enhanced through the flush-front locking system, providing a clean appearance while protecting critical equipment from unauthorised access. For applications requiring improved thermal performance, the cabinet can be supplied with optional insulation to minimise the effects of external temperature fluctuations.
An optional 100mm aluminium plinth is available to provide additional ground clearance, simplify cable entry arrangements, and improve installation flexibility on site.
Features:
Applications:
