Single door cabinet, Wall mount, 650W x 500D x 750H

Name: Single door cabinet, Wall mount, 650W x 500D x 750H - Cable Ways
SKU: OE1B1D655075W (ESLD02)

Single door cabinet, Wall mount, 650W x 500D x 750H

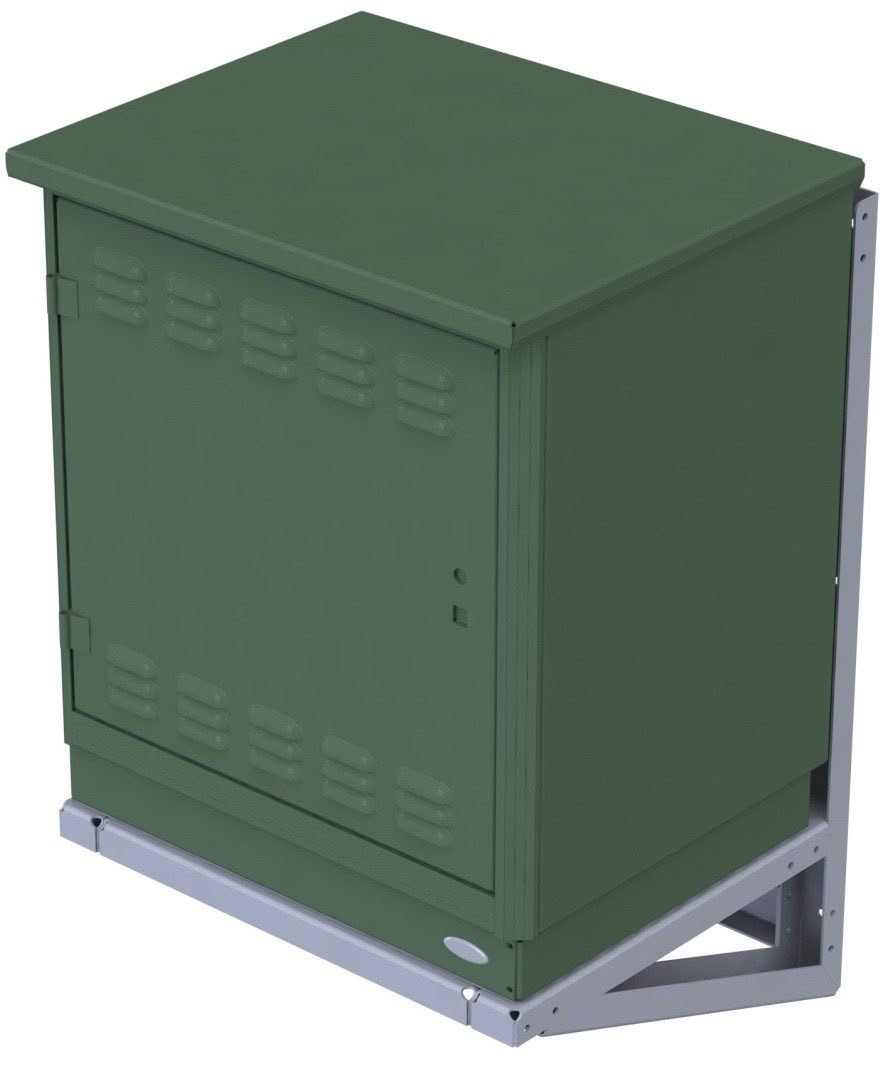

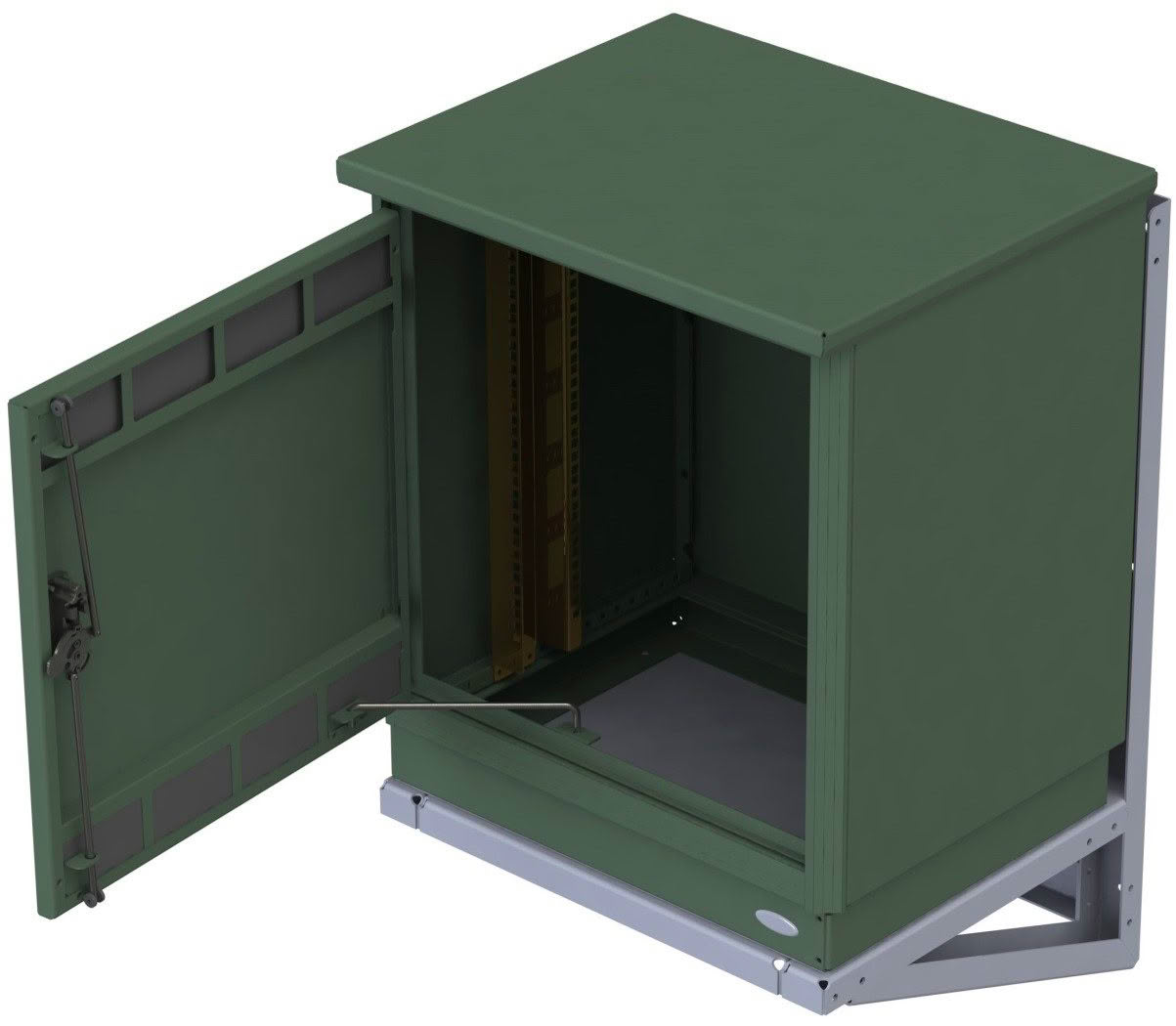

Compact wall-mounted cabinet (650W × 500D × 750H) with 12RU 19″ mounting, designed for secure and efficient equipment housing.

Features natural convection ventilation, flush front door, and optional 60mm aluminium plinth for flexible installation.

Product Code: OE1B1D655075W (ESLD02)

SKU: OE1B1D655075W (ESLD02) Categories: Outdoor plant cabinets, Single Bay Tag: Telecom

Additional information

Width	650
Depth	500
Height	750
Rack Units	12
Number of Bays	Single bay
Number of Doors	1
Door Specs	Natural convection
Locking System	Flush front lock
Cabinet Family	EcoStar
Standard Features	SS chassis hinge blocks, 2.5 mm marine grade skin for 25+ year life with UVR PE powder coat finish, IP rating up to 66 is available subject to application
Additional Features	Wall mount

Product description

The ESLD02 single door cabinet (650W × 500D × 750H) is a compact wall-mounted solution designed for telecommunications, control systems, and network equipment requiring secure and space-efficient installation. Built with a standard 12RU 19″ mounting system, it provides a structured and reliable platform for housing active equipment, power units, and communication devices.

Thermal performance is managed through natural convection, allowing passive airflow via venting to regulate internal temperature without the need for powered cooling. This makes the cabinet suitable for low to moderate heat load applications while maintaining energy efficiency and reduced maintenance.

The cabinet is fitted with a flush front door, designed for wall mounting. An optional 60mm aluminium plinth can be included to provide additional clearance for cable entry, airflow, and installation flexibility.
