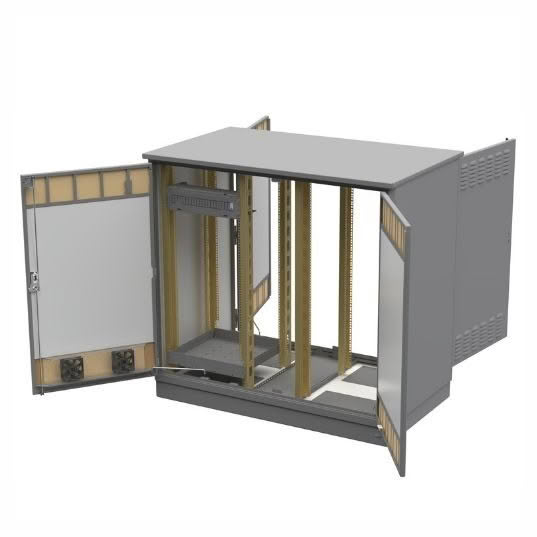

The Double Bay 4-Door Cabinet (1500W × 860D × 1430H) is a durable outdoor enclosure designed to house telecommunications, power, and infrastructure equipment.

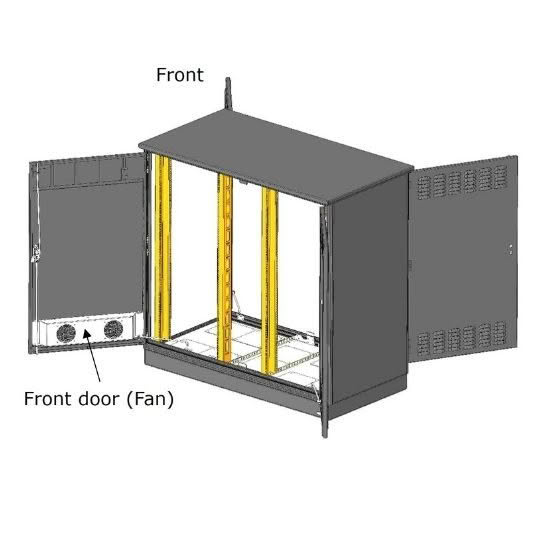

The cabinet features forced convection ventilation with a fan mounted on the front door. An optional thermostat is available to regulate internal temperature and support reliable equipment operation.
The doors are fitted with flush-front locks, providing secure access while maintaining a clean appearance.
The cabinet can be configured with a range of optional accessories to suit different installation requirements, including a 100 mm aluminium plinth, mounting rails, cable trays, access panels, five-sided insulation, and a fan kit with thermostat for enhanced thermal management.
| Width | 1500 |
|---|---|
| Depth | 860 |
| Height | 1430 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 4-Door Cabinet (1500W × 860D × 1430H) is a durable outdoor enclosure designed to house telecommunications, power, and infrastructure equipment in demanding environments.
Manufactured from marine-grade aluminium and finished with a UV-resistant polyester powder coating, the cabinet provides excellent corrosion resistance and long-term durability for outdoor installations.
The cabinet features forced convection ventilation with a fan mounted on the front door to assist airflow and heat dissipation. An optional thermostat is available to regulate internal temperature and support reliable equipment operation.

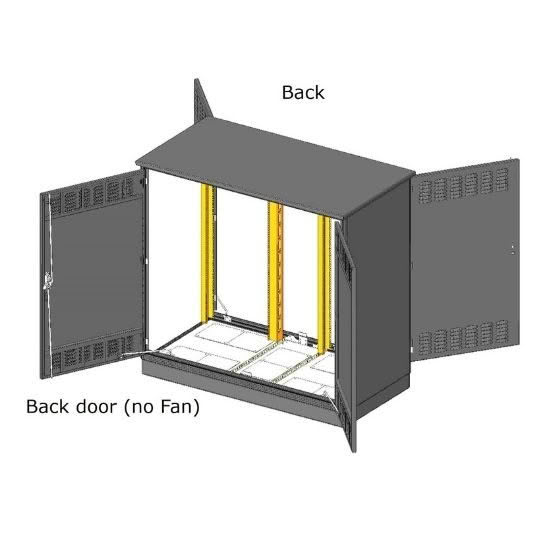

Four lockable doors fitted with flush-front locks provide secure access for equipment installation and maintenance while maintaining a clean and professional appearance.
The cabinet can be configured with a range of optional accessories to suit different installation requirements, including a 100 mm aluminium plinth, mounting rails, cable trays, access panels, five-sided insulation, and a fan kit with thermostat for enhanced thermal management.
Suitable for telecommunications networks, power distribution systems, ITS applications, water monitoring, and other critical infrastructure, this cabinet offers a flexible and reliable solution for protecting outdoor equipment.
