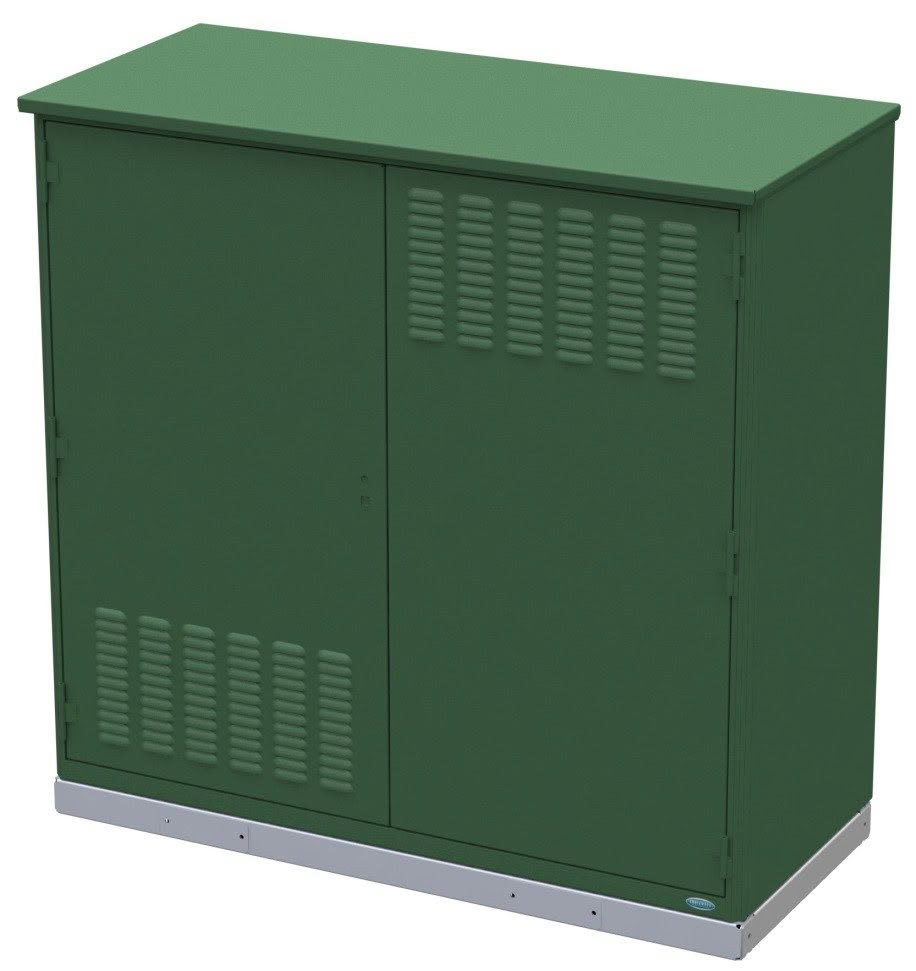

The Double Bay 2-Door Outdoor Cabinet (1500W × 650D × 1485H) is a versatile outdoor electrical and telecommunications enclosure designed for infrastructure, control systems, and battery installations.
The cabinet features overlapping naturally vented left and right-hand doors with louvers and filter foam, allowing airflow while helping prevent dust ingress. A flush front point locking system provides secure access, and an internal document holder allows storage of installation or maintenance records.
Optional configurations include 19″ mounting rails for communications equipment, as well as a battery frame with fixed shelves, enabling the cabinet to support combined telecommunications equipment and battery backup systems. Additional options include 5-sided insulation and a 75 mm HDG plinth for improved installation.
| Width | 1500 |
|---|---|
| Depth | 650 |
| Height | 1485 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Colour options | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 2-Door Cabinet (1500W × 650D × 1485H) is an outdoor enclosure designed for telecommunications equipment, electrical control systems, and battery backup installations used in infrastructure and utility environments.
The cabinet features a double-bay configuration, allowing separation between communications equipment and power systems within the enclosure. The design includes overlapping left- and right-hand front doors with natural ventilation, incorporating door louvers fitted with filter foam to promote airflow while helping prevent dust and debris from entering the cabinet.
For secure operation, the cabinet is fitted with a flush front point locking system, providing controlled access to internal equipment. An internal document holder is included to store installation drawings, commissioning information, or maintenance records for convenient reference during servicing.
The cabinet can be configured to support both communications equipment and battery systems. Optional configurations include:
1 pair of 19″ mounting rails in the right-hand bay, suitable for telecommunications or network equipment
Battery frame in the left-hand bay with three fixed battery shelves, designed to support battery backup installations
5-sided insulation to improve thermal stability and protect sensitive equipment from external temperature variations
75 mm hot-dip galvanised (HDG) plinth, providing elevated installation and improved cable entry clearance
The cabinet also incorporates a polypropylene base, allowing flexible cable entry and providing protection against ground moisture.
Designed for outdoor infrastructure environments, this enclosure provides reliable protection and flexible configuration for telecommunications networks, SCADA systems, utility monitoring equipment, and remote infrastructure installations.
