Single-door wall-mounted outdoor cabinet (650W × 650D × 1430H, 28RU) designed for telecommunications and infrastructure applications.
Features 19″ mounting rails, flush front locking system, and forced ventilation with dual filter fans and thermostat, with optional 100 mm aluminium plinth.
| Width | 650 |
|---|---|
| Depth | 650 |
| Height | 1430 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | |
| Additional Features |

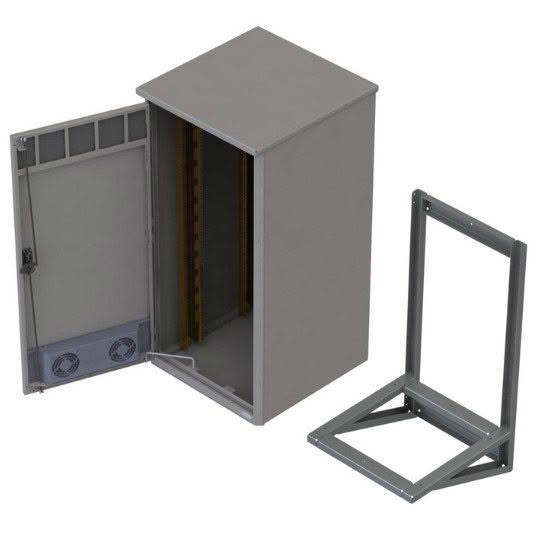

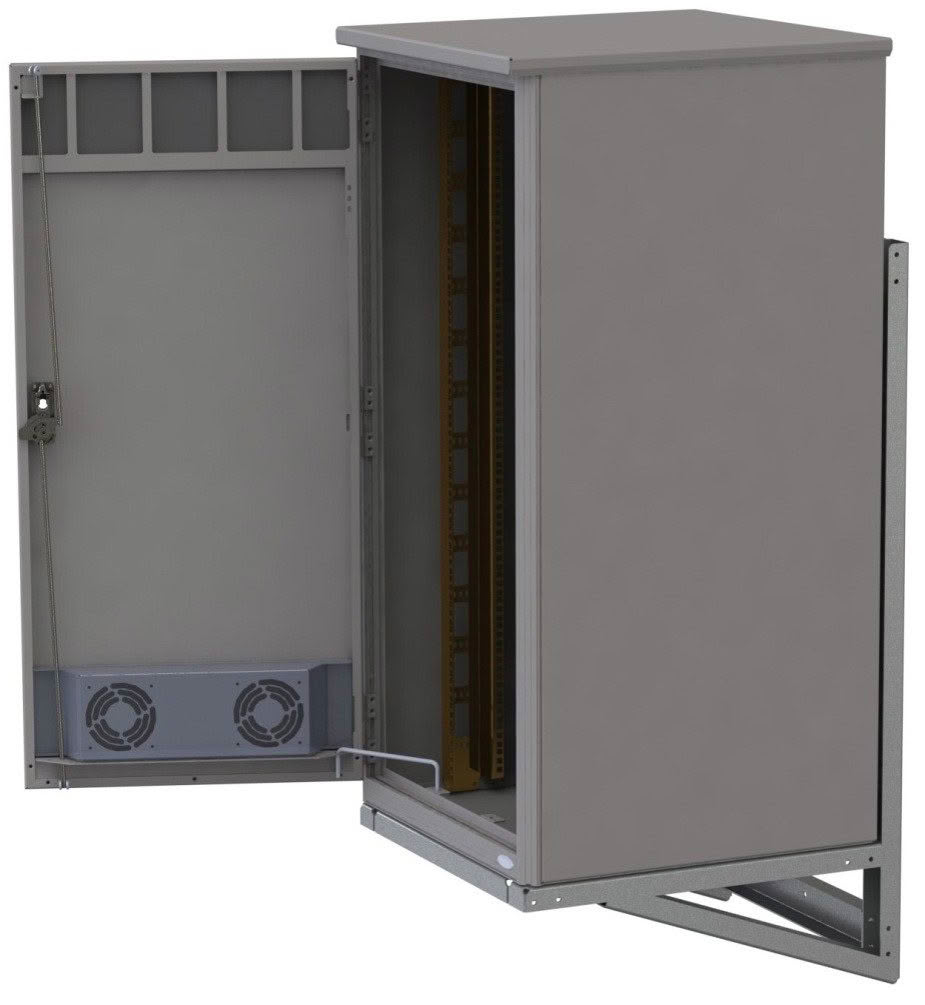

Compact and robust, this single-door wall-mounted outdoor cabinet (650W × 650D × 1430H, 28RU) is designed to support telecommunications, control, and infrastructure equipment in space-constrained installations.
The cabinet is configured with standard 19″ mounting rails, providing compatibility with a wide range of rack-mounted equipment. A flush front locking system ensures secure and streamlined access, making it suitable for both public and controlled environments.
Thermal management is achieved through a forced ventilation system, including 1 fan kit consisting of 2 × 120 mm filter fans (2-wire) with a 230V thermostat. This setup supports consistent airflow, helping maintain optimal internal operating conditions and extending equipment life in outdoor environments.
Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is built for durability. It offers high ingress protection (up to IP66 depending on configuration), making it suitable for telecom, energy, water, and transport applications.
Designed for wall-mounted installations, the cabinet provides flexibility in deployment where ground space is limited. An optional 100 mm aluminium plinth is available for applications requiring additional clearance, cable management, or alternative mounting configurations.
