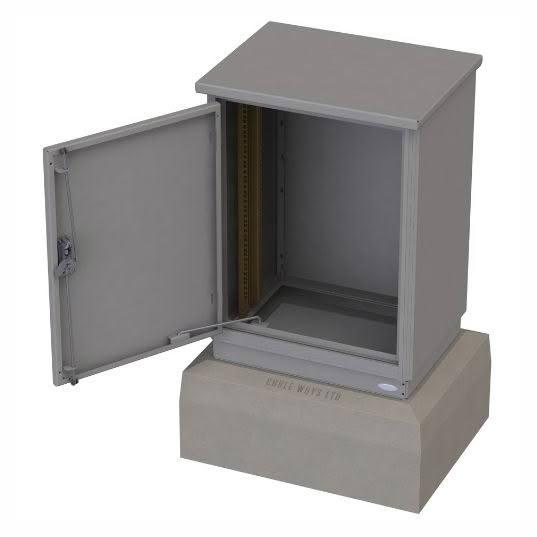

This single-door outdoor cabinet (600W x 450D x 840H) is a compact and robust enclosure designed for telecommunications, fibre, and infrastructure applications where secure equipment housing and efficient installation are essential. The cabinet is configured as a single-bay unit with 19″ mounting rails (15RU), supporting standard rack-mounted equipment in a space-efficient footprint.

The enclosure features a plain (no convection) door, providing a sealed environment suitable for applications where ventilation is not required or where internal thermal management is handled separately. A flush front locking system ensures secure access while maintaining a clean, low-profile external appearance for public or exposed installations.

Manufactured from 2.5mm marine-grade aluminium with a durable powder-coated finish, the cabinet offers excellent corrosion resistance and long-term performance in harsh outdoor and coastal environments.

To suit different installation scenarios, the cabinet is available with flexible plinth options:

• 60mm aluminium plinth – suitable for existing or already prepared sites, providing ground clearance and adaptable mounting

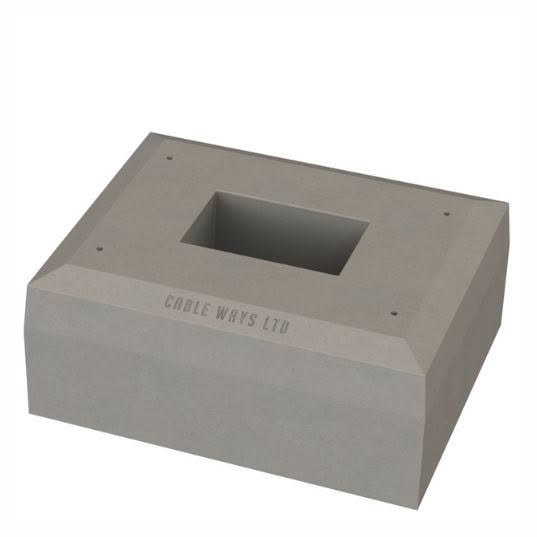

• Cable Ways concrete plinth – designed for new installations, enabling faster setup, stable positioning, and efficient cable entry

These options allow the cabinet to be deployed effectively across both upgrades and new infrastructure projects, depending on site requirements.

Key features:

• Compact single-bay, single-door design
• 19″ mounting rails, 15RU capacity
• Plain door (sealed, no convection)
• Flush front locking system for secure access
• Constructed from 2.5mm marine-grade aluminium
• Plinth options for existing sites or new installations
• Suitable for telecom, fibre, and infrastructure applications

This cabinet is ideal for projects requiring a compact, secure, and installation-ready enclosure, with flexibility to suit a range of site conditions.
