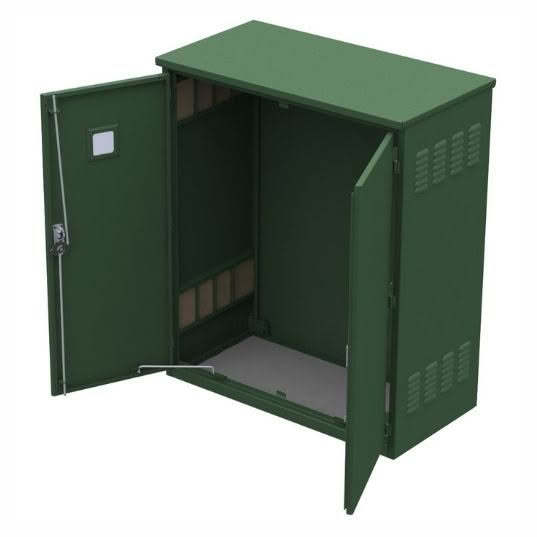

Double-bay, 2-door outdoor cabinet (1000W × 500D × 1200H) with integrated meter viewing window, designed for energy, telecommunications, and infrastructure applications requiring secure equipment monitoring and reliable environmental protection.

The cabinet features two plain front doors, providing a clean and unobstructed front profile for secure access and clear visibility through the meter window. Ventilation is achieved through side-mounted louvres, allowing effective natural convection airflow while maintaining the integrity and simplicity of the front door design.

Security is enhanced with recessed graffiti-safe locking systems, reducing exposure to tampering and vandalism while maintaining a flush, low-profile finish. The enclosure is supported by a polypropylene base, offering durability, corrosion resistance, and ease of cable entry management.

Constructed from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the cabinet is engineered for long-term outdoor performance. The design supports high ingress protection (up to IP66 depending on configuration), making it suitable for demanding environments across energy, water, transport, and telecommunications sectors.

The double-bay configuration provides increased internal capacity for flexible equipment layout, supporting efficient installation and maintenance access. This cabinet is well suited for applications where clean front access, vandal resistance, and passive thermal management from the sides are key requirements.
