The single bay 2 door VSD cabinet with external generator connection (1000W x 350D x 1500H) is a compact outdoor enclosure designed to securely house Variable Speed Drive (VSD/VFD) equipment in water and transport infrastructure environments.
Featuring dual front doors, an internal isolation door for mounting monitoring hardware, accessible MCB and alarm indicator section, and a configurable generator extension with optional Automatic Transfer Switch (ATS) integration, this cabinet supports safe operation and managed backup power in demanding outdoor conditions.
| Width | 1000 |
|---|---|
| Depth | 350 |
| Height | 1500 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | |
| Additional Features |
The single bay 2 door VSD Cabinet with external generator connection (1000W x 350D x 1500H) is purpose-designed to house and protect Variable Speed Drive VSD/VFD equipment in demanding environment typically found in water and transport infrastructure environment.

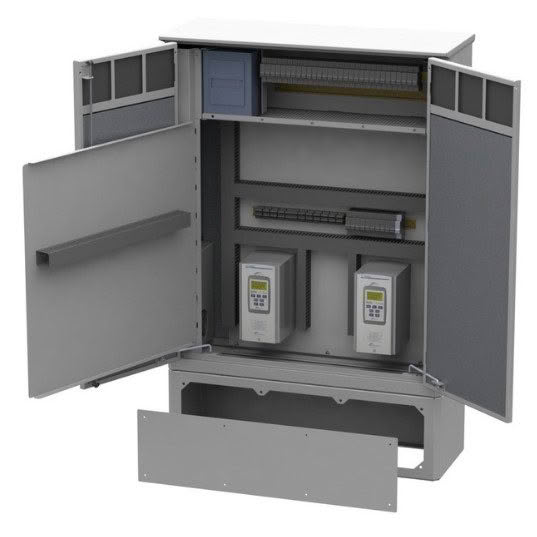

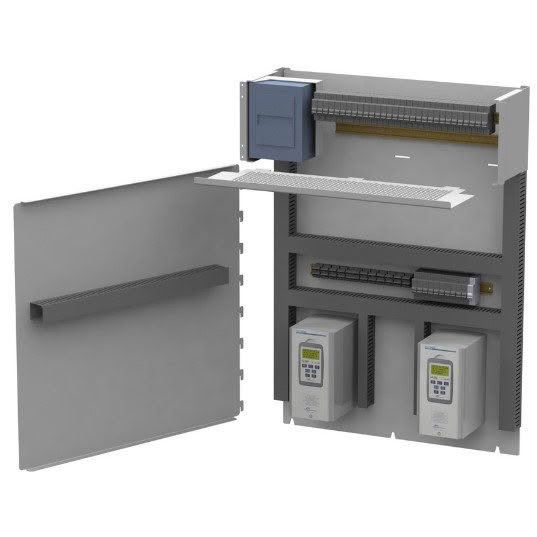

The dual-door front configuration improves access management and operational separation. The internal door isolates the VSD compartment, restricting direct access to active equipment. The internal door is used to mount monitoring and control hardware.

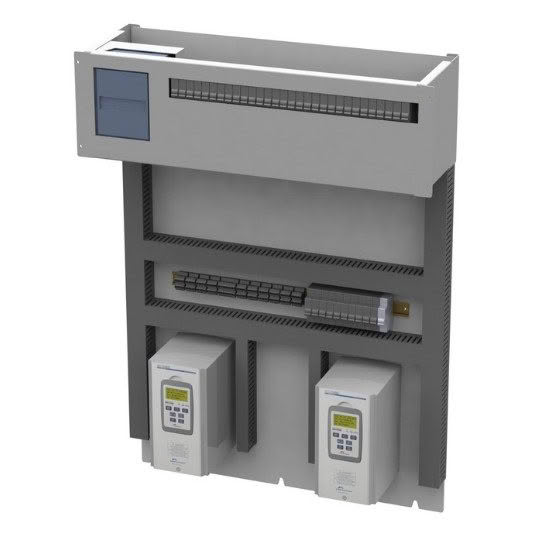

The upper section of the cabinet give access to specific feed MCBs and alarm status indicators. Safety is enhanced by minimising exposure to live components during routine checks.
The cabinet includes a dedicated generator extension, which can be installed either on the side of the cabinet or integrated within the plinth for additional physical protection. ATS circuitry may be added as required. This flexible configuration supports managed backup power requirements while maintaining enclosure integrity.
Designed for outdoor public environments, this enclosure provides a practical solution for VSD / VFD installations that require secure housing, controlled access, and generator-ready capability in a compact footprint.
Available sizes in this series:
