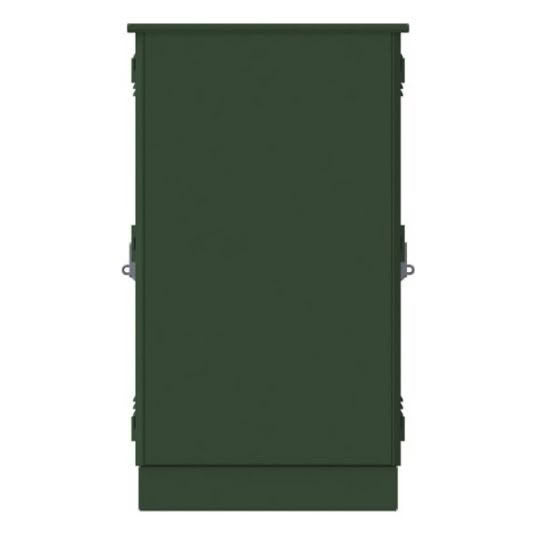

The Double Bay 4-Door Cabinet (1500W × 860D × 1580H) is a robust outdoor enclosure designed for telecommunications and infrastructure equipment.

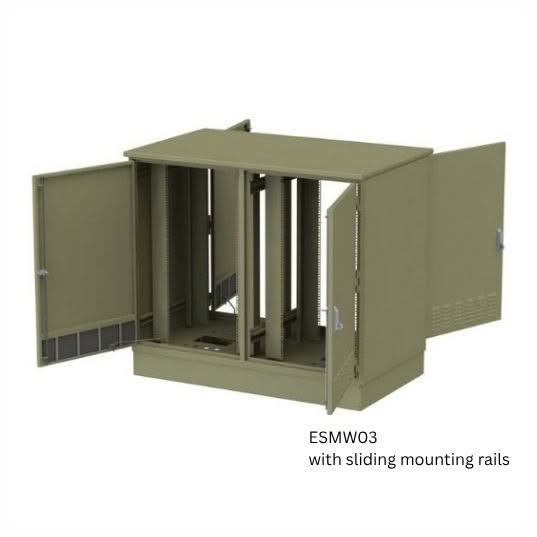

Featuring a dual-bay layout, four-door access, and options for standard mounting (ESMW01) or sliding mounting rails (ESMW03), it offers flexible installation, secure housing, and reliable performance in demanding environments.
Optional accessories include a 150 mm aluminium plinth, and for the standard mounting model, thermostat-controlled filter fans, internal LED lighting, and five-sided insulation.
| Width | 1500 |
|---|---|
| Depth | 860 |
| Height | 1580 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 4-Door Cabinet (1500W × 860D × 1580H) is a heavy-duty outdoor enclosure designed to support telecommunications, power, and infrastructure applications in demanding environments.

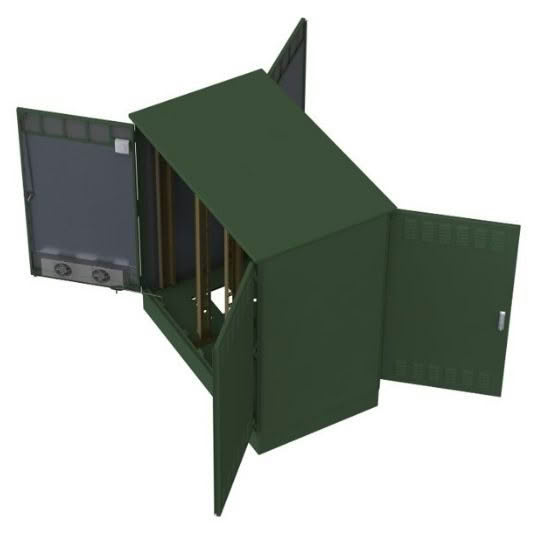

Featuring a dual-bay configuration with four-door access (front and rear), the cabinet allows efficient installation, organised cable management, and convenient maintenance. With approximately 31RU capacity, it provides ample space for both active and passive equipment.
The cabinet is available in two configurations:
Constructed from 2.5 mm marine-grade aluminium with UV-resistant powder coating, the cabinet is built for durability and long service life in harsh outdoor conditions.
Security is ensured through a three-point locking system with swing handle padlock, while thermal performance can be managed through natural or forced convection cooling solutions, depending on site requirements.
Optional features are available to tailor the cabinet to specific applications:
With an IP rating up to IP66 (application dependent), the cabinet provides reliable protection against dust and moisture, making it suitable for telecommunications, transport, water, and energy infrastructure projects.
Its combination of flexible configuration, durable construction, and optional enhancements ensures reliable performance and adaptability across a wide range of outdoor installations.
