A robust outdoor cabinet designed for telecommunications, electrical, control, and infrastructure applications.
Featuring a 19″ mounting system, front and rear access doors, integrated ventilation, and secure swing-handle locking.
Manufactured for demanding outdoor environments, with optional insulation and a 100mm hot-dip galvanised (HDG) plinth for enhanced durability and installation flexibility.
| Width | 650 |
|---|---|
| Depth | 750 |
| Height | 1690 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |

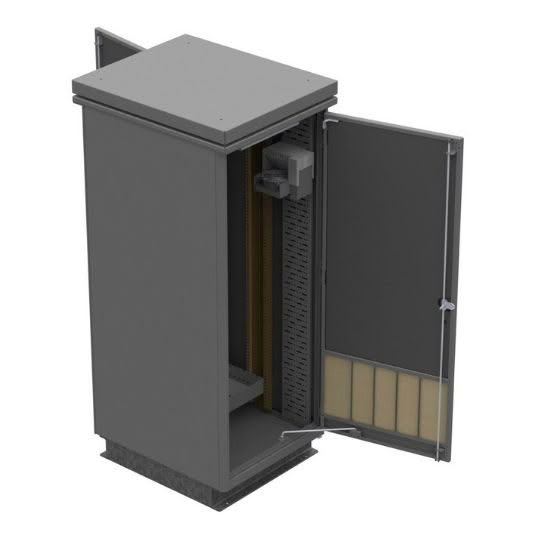

The Single Bay 2-Door Cabinet provides a reliable and secure enclosure solution for outdoor telecommunications, electrical distribution, automation, and network equipment installations. Designed with both front and rear access, the cabinet allows convenient equipment installation, maintenance, and cable management while maximising operational efficiency.
The cabinet incorporates a standard 19″ mounting arrangement suitable for a wide range of active and passive equipment. Integrated ventilation assists with heat dissipation and airflow management, helping maintain optimal operating conditions for installed equipment.
Security is provided through lockable swing-handle locks fitted to both doors, while the cabinet construction offers excellent protection against harsh environmental conditions. For applications requiring additional thermal performance, optional insulation is available to help minimise temperature fluctuations inside the enclosure.
To further enhance outdoor durability and site installation requirements, the cabinet can be supplied with an optional 100mm Hot Dip Galvanised (HDG) plinth, providing additional clearance from ground level and improving cable entry flexibility.
Features:
Applications:
