Double bay outdoor enclosure with four doors, 1500 mm (W) × 750 mm (D) × 1430 mm (H).
Features 19″ equipment mounting rails providing a total of 56 RU (28 RU per bay) with a heavy-duty battery frame. fan-assisted cooling with thermostat control, and secure swing handle keylock.
EcoStar cabinet ideal for telecom, data, power and industrial equipment housing.
| Width | 1500 |
|---|---|
| Depth | 750 |
| Height | 1430 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |

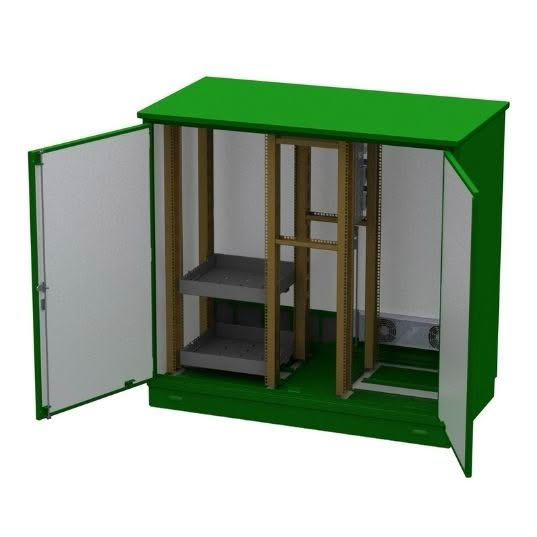

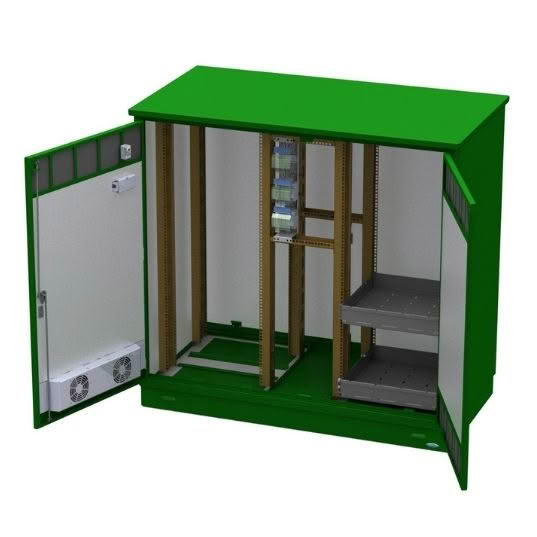

The Double Bay 4 Door EcoStar Cabinet with heavy-duty battery frame is a high-capacity outdoor enclosure designed to securely house telecommunications, data, power and industrial equipment in demanding environments. Measuring 1500 mm wide × 750 mm deep × 1430 mm high, the double bay configuration provides four access doors and an internal layout optimised for high-load installations.
The cabinet features 19″ equipment mounting rails offering a total of 56 rack units (28 RU per bay) of usable equipment space, supported by a heavy-duty battery frame suited for high-load equipment / batteries. Active thermal management is provided by an integrated fan system controlled by a thermostat, automatically regulating internal temperatures to help maintain safe operating conditions for installed equipment.
Built on the EcoStar platform, the enclosure delivers robust outdoor performance with secure access provided by a swing handle keylock. The durable construction and controlled cooling solution make this cabinet suitable for outdoor telecom sites, power systems, battery backup installations and industrial applications where reliable ventilation, equipment protection and load-bearing capability are essential.
