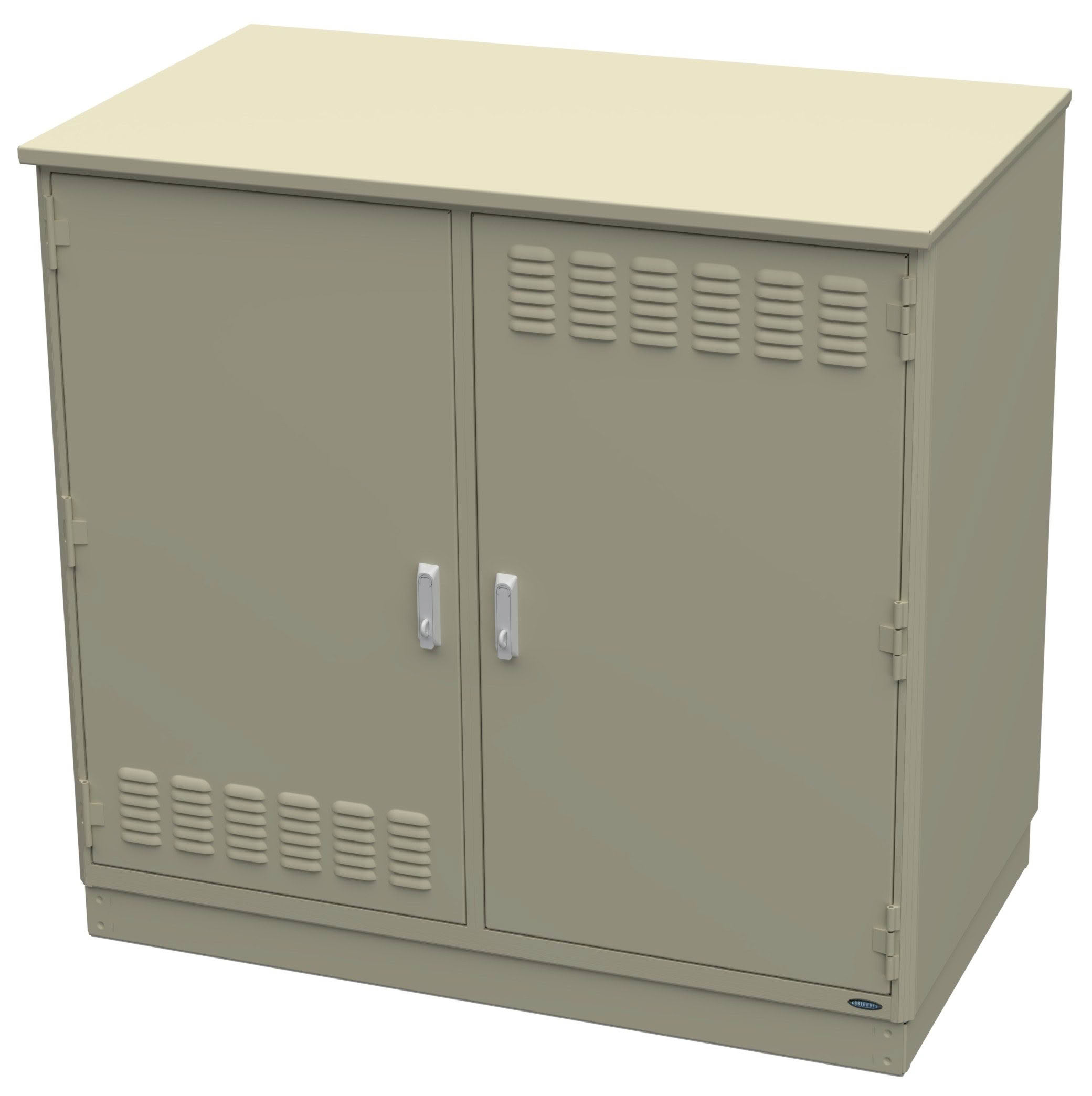

The Double Bay 2-Door Cabinet (1500W × 850D × 1432H) is a heavy-duty outdoor enclosure designed for telecommunications, power, and infrastructure installations. It features four pairs of 19″ mounting rails, vented louvered doors with filter foam for natural airflow, and organised cable management through twin access panels and a central cable gland plate. Additional features include a document holder, with optional accessories such as a 100 mm aluminium plinth, thermostat, and fan kit for improved installation flexibility and thermal control.
| Width | 1500 |
|---|---|
| Depth | 850 |
| Height | 1432 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Colour options | |
| Door Specs | Forced convection with fan, Natural convection with filter foam |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 2-Door Cabinet (1500W × 850D × 1432H) is a robust outdoor enclosure designed to securely house telecommunications, power, and monitoring equipment in demanding infrastructure environments.
The cabinet is equipped with four pairs of adjustable 19-inch mounting rails, allowing flexible installation of standard rack-mounted equipment across both bays. The natural vented door louvers with filter foam provide passive airflow while helping reduce dust ingress, supporting reliable operation of installed equipment.
For efficient cable management and installation, the cabinet includes an aluminium base panel with twin access panels for each bay and a central cable gland panel, enabling organised cable entry and separation of power and communications wiring.
A document holder is integrated inside the cabinet door, providing convenient storage for site documentation, wiring diagrams, and maintenance records.
To support maintenance and operation, the cabinet can be fitted with front and rear door-switched LED bay lighting bars, providing clear internal visibility whenever the cabinet doors are opened.
The enclosure can also include a power distribution chassis to support internal equipment power management, along with an optional thermostat and fan kit to enhance thermal control in environments where additional ventilation is required.
For outdoor installations, the cabinet can be mounted on an optional 100 mm aluminium plinth, improving cable entry, drainage clearance, and installation flexibility.
The cabinet is suitable for a wide range of applications including telecommunications networks, transport systems, utilities infrastructure, and remote monitoring installations, where secure equipment housing, reliable airflow, and organised cable management are essential.
