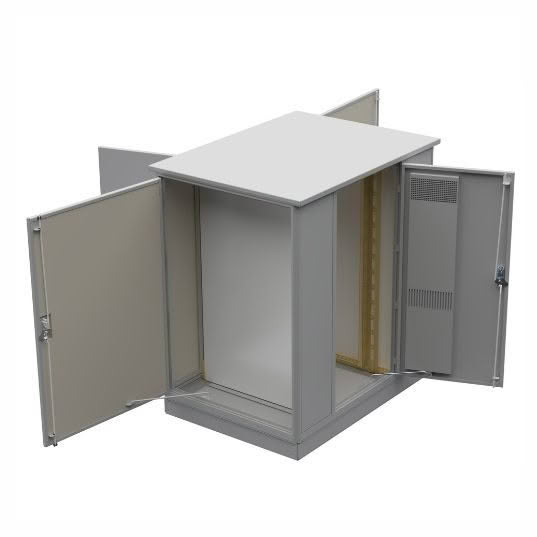

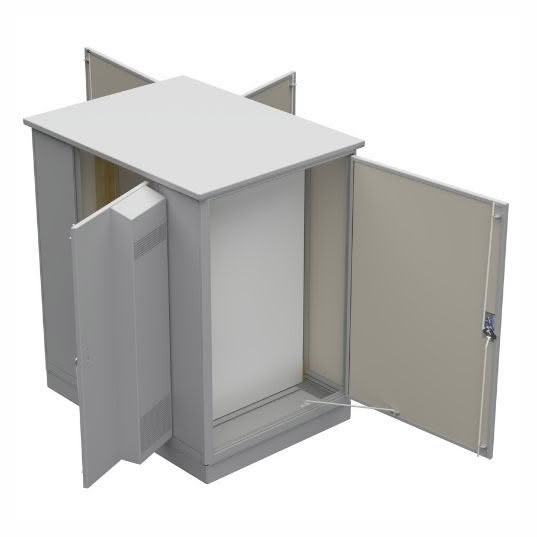

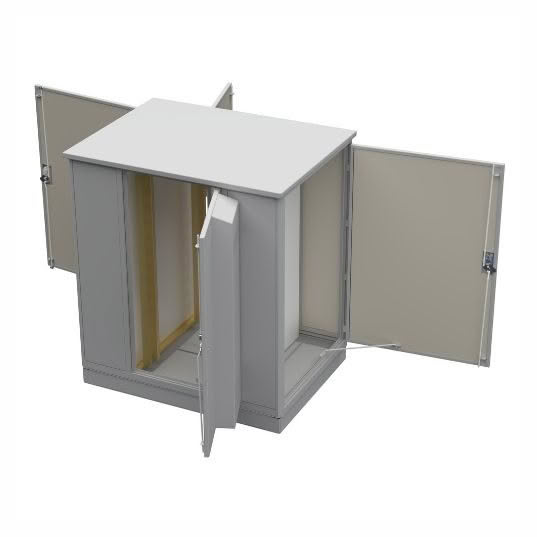

3-bay, 4-door outdoor cabinet designed for telecom and infrastructure applications. Features a heat exchanger (HEX) door with four controlled 120 mm 48V DC fans, adjustable 19″ EIA mounting rails, insulated panels and removable base cable-access covers. Three plain doors are fitted with CWL flush-front, three-point locking systems. Mounted on a 100 mm aluminium plinth and finished in UV-resistant polyester powder coat.
| Width | 1250 |
|---|---|
| Depth | 900 |
| Height | 1400 |
| Number of Bays | |
| Number of Doors | |
| Locking System | |
| Cabinet Family | |
| Standard Features | |
| Door Specs |
The 3-bay, 4-door outdoor cabinet provides a robust and versatile enclosure for telecom, communications and infrastructure equipment, with integrated ventilation, secure access and flexible equipment mounting.
The cabinet features one heat exchanger (HEX) door, with four 120 mm 48V DC fans and a controller fitted to the middle front section. Two plain side doors and one plain middle rear door are fitted with CWL flush-front, three-point locking systems for secure and convenient equipment access.
Internally, the cabinet is fitted with two pairs of adjustable 19″ EIA mounting rails to accommodate standard rack-mounted equipment. Five sides are insulated to support thermal management and help protect installed equipment from external temperature conditions.
A polypropylene base is fitted with eight removable access covers, providing flexible cable entry and routing options. Two full-size 6 mm polypropylene gear trays are fitted, one on each side, providing additional space for mounting equipment and components.
The cabinet is mounted on a 100 mm high aluminium plinth and finished in UV-resistant polyester powder coat in Ghost Grey Ripple / Karaka Green Ripple, providing a durable finish suitable for outdoor environments.
