Single-door 19″ cabinet (700W x 400D x 1400H) manufactured from 2.5 mm marine-grade material with a durable powder-coat finish, aligned with AS/NZS 2312.1:2014 for atmospheric corrosion protection.
Complies with ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502 for NZ Transport Agency roadside applications.
Features 19″ mounting rails, natural-vent door louvers with filter foam, three-point locking system with combination lock, meter viewing window, and integrated battery base stand. Optional 100 mm aluminium plinth available.
Finished in Karaka Green (RAL 6015), Almond Ripple (RAL 1015), or T33 Smoke Blue (AS2700) and coated with an NZTA-approved anti-graffiti system in accordance with NZTA S10.
| Depth | 400 |
|---|---|
| Width | 700 |
| Height | 1400 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | |
| Additional Features | Compliance to AS/NZS 2312.1:2014 – Protective coatings for atmospheric corrosion, Compliance to ITS-SPEC-CAB-202502 – NZTA Delivery Specification for Roadside Cabinets, Compliance to ITS-STND-CAB-202502 – NZTA Roadside Cabinet Standard, Compliance to NZTA S10 – Anti-graffiti coating requirement, Viweing window |

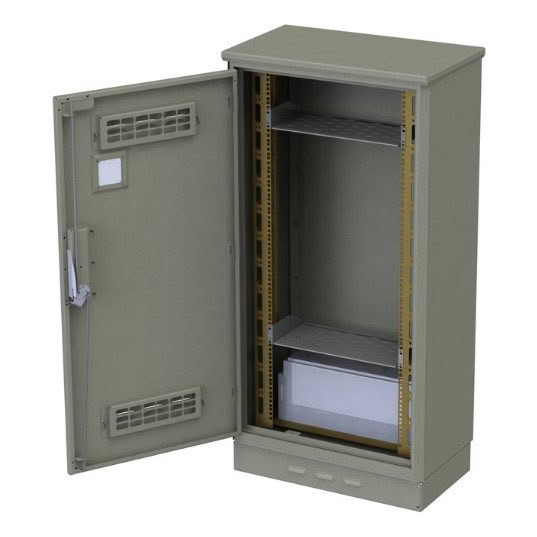

This single-door 19″ cabinet (700W x 400D x 1400H) is constructed from 2.5 mm marine-grade material, delivering excellent corrosion resistance and long-term durability in outdoor environments. The enclosure is finished with a high-quality powder-coat system aligned with AS/NZS 2312.1:2014 for protective paint coatings on structural components.
To meet NZ Transport Agency (Waka Kotahi) requirements, the cabinet is treated with an approved anti-graffiti coating, applied prior to installation in accordance with the NZTA S10 Specification for Anti-Graffiti Coatings. This provides improved surface protection, reduced cleaning effort, and resilience in exposed public areas.
The cabinet complies with ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502, making it suitable for roadside ITS, communications, traffic management, and power-system applications. Standard 19″ mounting rails accommodate a wide range of equipment including ITS controllers, networking hardware, UPS units, and auxiliary power systems. Natural ventilation is provided through door louvers fitted with filter foam, allowing passive airflow while minimising dust and contaminant ingress.
Security is enhanced with a robust three-point locking system paired with a combination lock, while a meter viewing window enables quick inspection without opening the door. An integrated battery base stand provides a stable platform for housing backup or auxiliary batteries. An optional 100 mm aluminium plinth is available to increase installation height and improve cable management and site stability.
Available finish colours include:
Karaka Green (RAL 6015)
Almond Ripple (RAL 1015)
T33 Smoke Blue (AS2700)
This cabinet design is proven in NZTA applications , demonstrating its reliability and suitability for demanding roadside ITS and transport-infrastructure environments.
