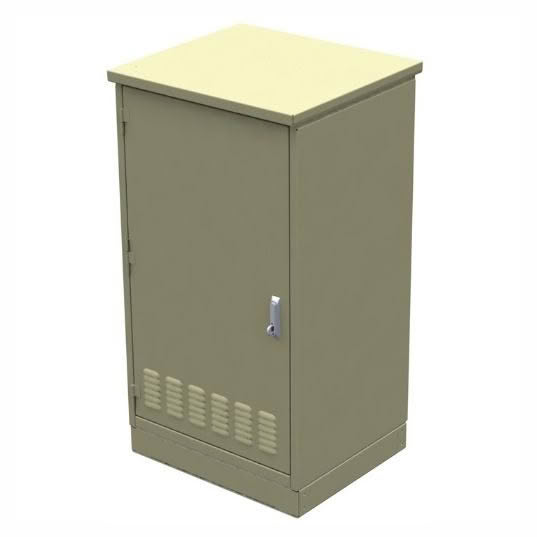

Single Bay 2-Door 19″ roadside ITS cabinet, 740 W × 620 D × 1390 H, designed in accordance with NZTA ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502 for roadside ITS applications.
Features two pairs of 19″ EIA mounting rails, three-point locking with swing-handle padlocks, naturally vented louvres with filter foam at the base of the front door (optional fan kits available), document holder, and plain rear door. Mounting is available on an optional 150 mm aluminium plinth.
Constructed with a cross-folded roof from 2.5 mm marine-grade material and finished in durable UV RPE Almond Ripple powder coat, compliant with AS/NZS 2312.1:2014 for atmospheric corrosion protection. Optional colours include Karaka Green (RAL 6015), Almond Ripple (RAL 1015), and T33 Smoke Blue (AS2700). An NZTA-approved anti-graffiti coating in accordance with NZTA S10 is also available.
| Width | 740 |
|---|---|
| Depth | 620 |
| Height | 1390 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | Cross-folded roof, Document holder, SS chassis hinge blocks, 2.5 mm marine grade skin for 25+ year life with UVR PE powder coat finish, IP rating up to 66 is available subject to application |
The Single Bay 2-Door Cabinet (740 W × 620 D × 1390 H) is a compact, standards-compliant enclosure designed for roadside Intelligent Transport Systems (ITS) installations. Engineered in accordance with NZTA ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502, this cabinet provides a durable and secure solution for housing ITS, communications, and power equipment in demanding roadside environments.

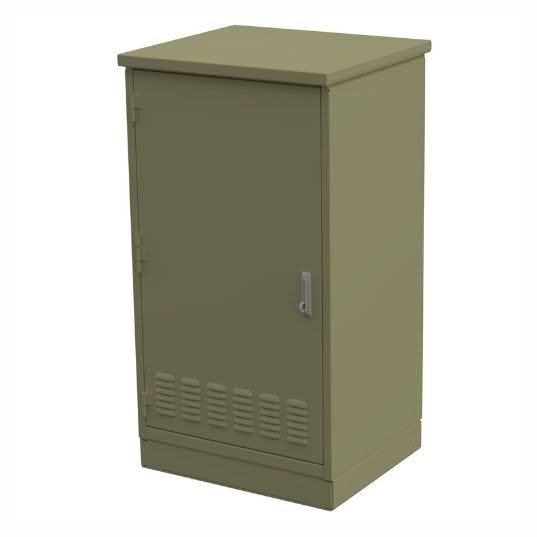

The cabinet is manufactured from 2.5 mm marine-grade material, ensuring strength and corrosion resistance. A cross-folded roof enhances weather protection and structural integrity. The enclosure is finished in a high-performance UV RPE Almond Ripple powder coat, compliant with AS/NZS 2312.1:2014 for atmospheric corrosion protection. Optional colour finishes include Karaka Green (RAL 6015), Almond Ripple (RAL 1015), and T33 Smoke Blue (AS2700). An NZTA-approved anti-graffiti coating, compliant with NZTA S10, is available to support long-term roadside appearance and maintenance.

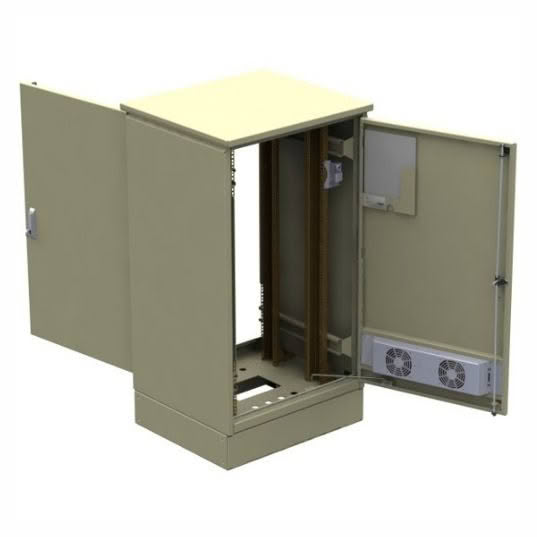

Internally, the cabinet is fitted with two pairs of 19″ EIA mounting rails, providing flexible mounting options for a wide range of ITS and communications equipment. The front door incorporates naturally vented louvres at the base, fitted with filter foam to promote passive airflow while reducing dust ingress. Optional fan kits can be installed where additional ventilation or thermal management is required.

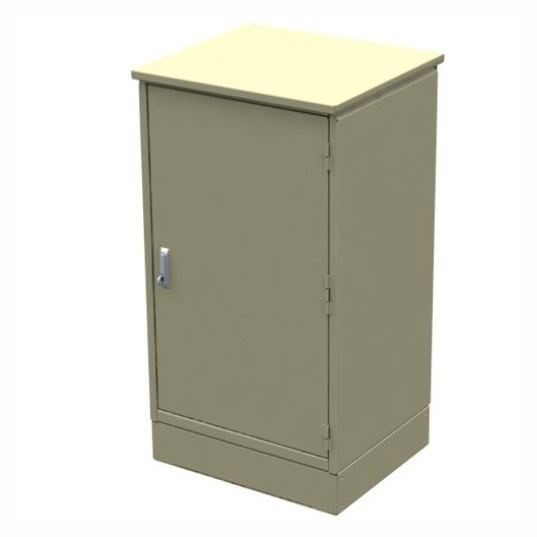

Security is provided by three-point locking systems with swing-handle padlocks on both doors, ensuring controlled access to critical equipment. A document holder is included for storage of drawings, manuals, or compliance documentation. The plain rear door provides clear rear access for installation and maintenance.
For installation flexibility, the cabinet can be supplied mounted on an optional 150 mm aluminium plinth, suitable for concrete pads and roadside foundations.
This Single Bay 2-Door cabinet offers a proven, compliant solution for NZTA roadside ITS deployments, combining durability, security, and practical serviceability in a compact footprint.
