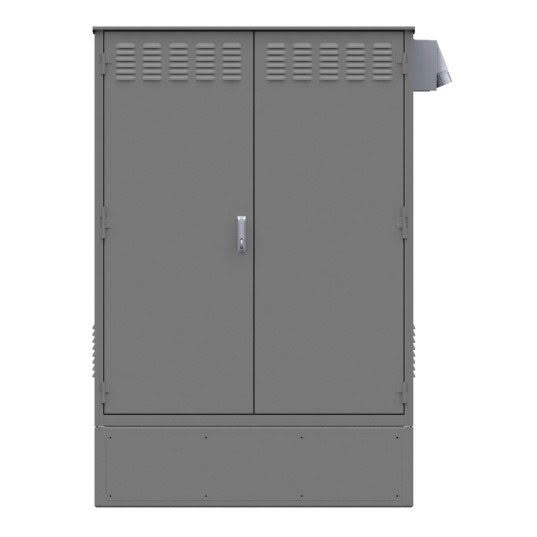

The Single Bay 2 Doors Cabinet 1200W x 550D x 1810H is a mid-capacity outdoor enclosure designed for transport and infrastructure applications. Its dual-door configuration supports efficient access and equipment segregation, making it suitable for power distribution, control systems, and communications equipment.
Features a three-point locking system with swing-handle padlock, internal door with meter mount, an optional generator extension, two 600 mm DIN mounting rails, internal gear tray, five-sided insulation, thermostat-controlled twin-fan cooling system, and LED lighting with automatic door switch. Supplied mounted on an optional 300 mm front-access aluminium plinth.
Constructed with a cross-folded roof from 2.5 mm marine-grade material and finished in durable UV RPE Almond Ripple powder coat, compliant with AS/NZS 2312.1:2014 for atmospheric corrosion protection. Optional finishes include Karaka Green (RAL 6015), Almond Ripple (RAL 1015), and T33 Smoke Blue (AS2700). An NZTA-approved anti-graffiti coating in accordance with NZTA S10 is also available.
| Width | 1200 |
|---|---|
| Depth | 550 |
| Height | 1810 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | Cross-folded roof, SS chassis hinge blocks, 2.5 mm marine grade skin for 25+ year life with UVR PE powder coat finish, IP rating up to 66 is available subject to application |
| Additional Features |
The Single Bay 2 Doors Cabinet 1200W x 550D x 1810H is designed for infrastructure environments requiring increased internal capacity while maintaining a consistent cabinet format.
As part of the Single Bay 2 Doors Cabinet series, this model provides a balanced solution between footprint and usable internal space. The dual-door design improves accessibility and supports structured equipment layout for maintenance and operational efficiency.
This cabinet is suitable for outdoor installations where additional equipment volume is required without moving to a larger multi-bay enclosure.
Manufactured from 2.5 mm marine-grade material, the cabinet provides long-term durability in harsh roadside environments. A cross-folded roof enhances weather protection and structural strength. The enclosure is finished in a high-performance UV RPE Almond Ripple powder coat, aligned with AS/NZS 2312.1:2014 for atmospheric corrosion protection. Optional finishes include Karaka Green (RAL 6015), Almond Ripple (RAL 1015), and T33 Smoke Blue (AS2700). An NZTA-approved anti-graffiti coating compliant with NZTA S10 is also available.

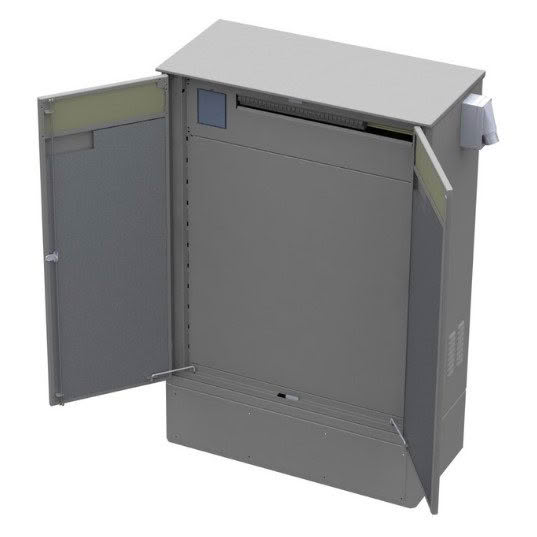

The cabinet features two external doors and an internal door fitted with a meter mount, enabling clear separation of metering, power, and control equipment. Optional feature is either to have a hole for own generator connection or including a generator extension connection, allowing temporary or emergency power supply to be safely integrated during outages or maintenance operations.
Internally, the enclosure includes two 600 mm DIN mounting rails and an internal gear tray, supporting organised installation of electrical and control components. The cabinet is insulated on five sides, improving thermal stability and protecting sensitive equipment.
Thermal management is achieved through a thermostat-controlled twin-fan cooling system, ensuring reliable heat dissipation under varying load conditions. LED internal lighting, activated by an automatic door switch, provides safe and efficient visibility during servicing.
Security is provided by a robust three-point locking system with swing-handle padlock, ensuring controlled access to critical infrastructure. The cabinet can be supplied mounted on an optional 300 mm front-access aluminium plinth, facilitating ergonomic access and straightforward roadside installation.
This cabinet delivers a standards-compliant, generator-ready solution for NZTA roadside ITS and electrical installations, combining durability, security, thermal performance, and operational flexibility for long-term field deployment.
Available sizes in this series:
