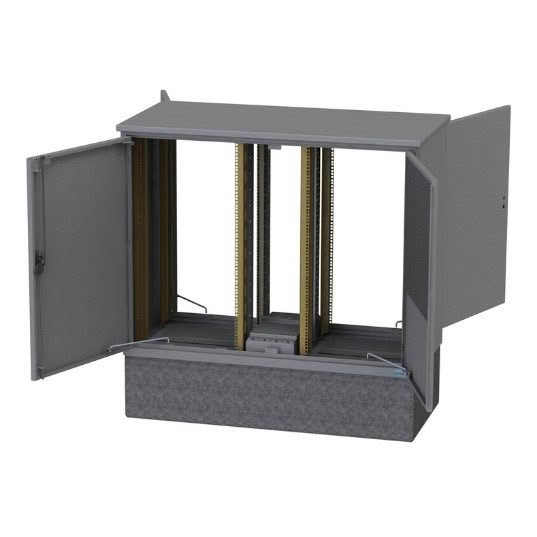

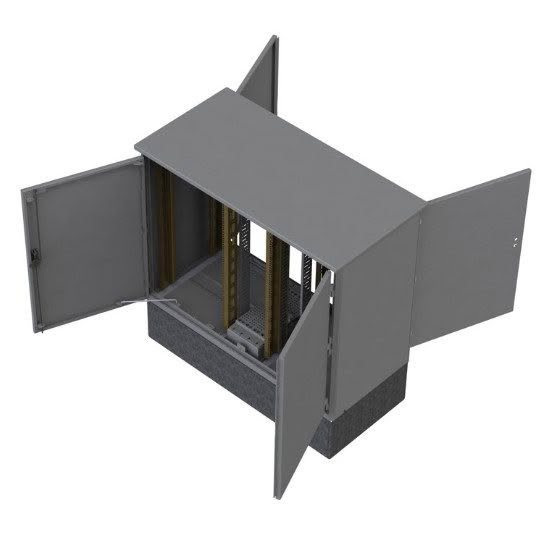

The Double Bay 4-Door Cabinet (1400W × 650D × 1400H) is a durable outdoor enclosure designed for telecommunications, power, and infrastructure equipment.
The cabinet features two front and two rear doors with a flush front and back locking system for secure access.
Finished in UVRPE Ghost Grey Ripple, the cabinet can be configured with optional accessories including a 300 mm aluminium plinth, mounting rails, cable trays, access panels, gland stand brackets, and five-sided insulation to suit different installation requirements.
| Width | 1400 |
|---|---|
| Depth | 650 |
| Height | 1400 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 4-Door Cabinet (1400W × 650D × 1400H) is a robust outdoor enclosure designed to house telecommunications, electrical, and infrastructure equipment in demanding environments. The double-bay configuration provides practical internal space for equipment installation while allowing convenient access for maintenance and servicing.
The cabinet features four doors — two front doors and two rear doors — with a flush front and back locking system, providing secure and organised access to equipment from both sides of the enclosure.
Finished in UV-resistant polyester powder coating (UVRPE) Ghost Grey Ripple, the cabinet is designed for outdoor infrastructure environments where durability and corrosion resistance are required.
The enclosure can be configured with several optional accessories depending on project requirements, including:
• 300 mm aluminium plinth for elevated installation and cable entry
• 4 pairs of mounting rails for flexible equipment installation
• 4 cable trays for organised cable management
• 8 lower access panels for additional cable access
• 8 gland stand brackets for cable entry support
• Five-sided insulation to improve internal thermal performance
This cabinet is suitable for telecommunications networks, power systems, monitoring equipment, and other infrastructure installations, providing a secure and adaptable enclosure solution for outdoor equipment protection.
