A robust double-bay UniStar outdoor equipment cabinet constructed from marine-grade aluminium, featuring three-door access, 19″ EIA equipment mounting, filtered ventilation and thermostatically controlled DC fan cooling.
Supplied with a polypropylene equipment base and 100mm aluminium plinth.
| Width | 1500 |
|---|---|
| Depth | 800 |
| Height | 1432 |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The UniStar Double-Bay 3-Door Outdoor Cabinet – 1500W × 800D × 1432H is designed for secure housing of telecommunications, energy and infrastructure equipment in outdoor environments.

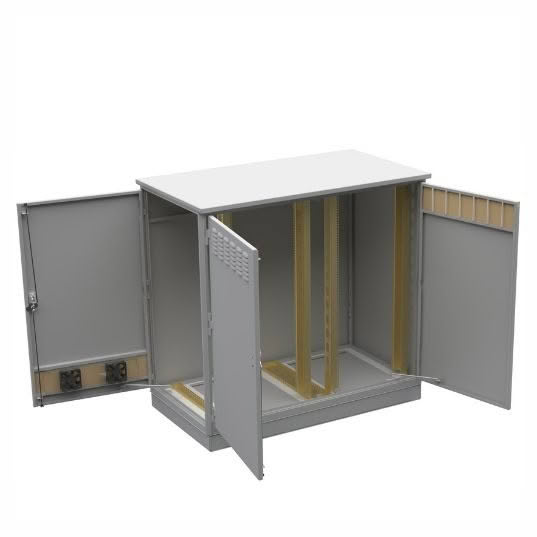

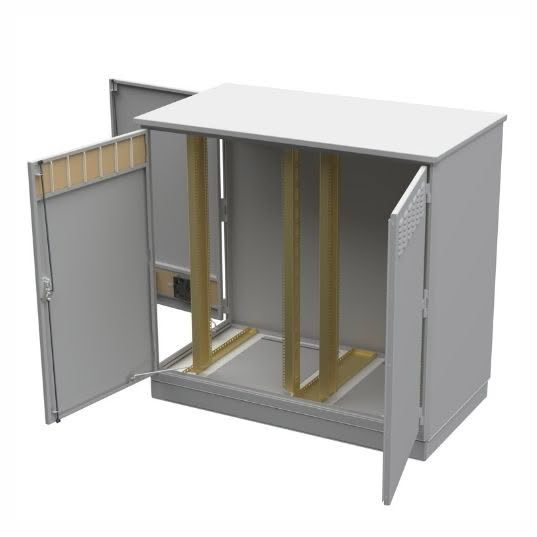

Constructed with marine-grade aluminium external panels and extrusions, the cabinet features two overlapping front doors and a left-side access door. The doors incorporate Cable Ways flush-front, three-point locking for secure equipment access.
Ventilated louvres are provided at the top of the front doors and bottom of the left-side door, with filter foam fitted to help control airborne contaminants. The left-side door incorporates two 120mm 12V DC filter fans operated by a thermostat fan kit, providing forced ventilation when required.
Internally, two pairs of 19″ EIA BZGP steel mounting rails provide standard rack-mount equipment support. A polypropylene base with removable access covers facilitates cable entry and equipment installation.
The cabinet is supplied mounted on a 100mm aluminium plinth, providing a complete outdoor enclosure solution suitable for demanding infrastructure applications.
