Heavy-duty outdoor double bay 2-door cabinet (1500W x 750D x 1430H) manufactured in New Zealand from 2.5mm marine-grade aluminium for superior corrosion resistance in harsh coastal and industrial environments.
Available with:
• Natural vented door louver with filter foam (Code ESITS02)
• Forced convection fan cooling (Code ESDG03)
Optional 5-sided insulation and 100mm aluminium plinth.
| Width | 1500 |
|---|---|
| Depth | 750 |
| Height | 1430 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | Flush front lock, Swing handle keylock, Three point locking system |
| Cabinet Family | |
| Standard Features |
The Double Bay 2-Door Outdoor Cabinet (1500W x 750D x 1430H) is engineered and manufactured in New Zealand from 2.5mm marine-grade aluminium, providing exceptional corrosion resistance and long service life in coastal, wastewater, transport and industrial environments.
Designed for housing electrical, telemetry, SCADA, VSD and communications equipment, this enclosure offers flexible thermal management options to suit different site conditions:

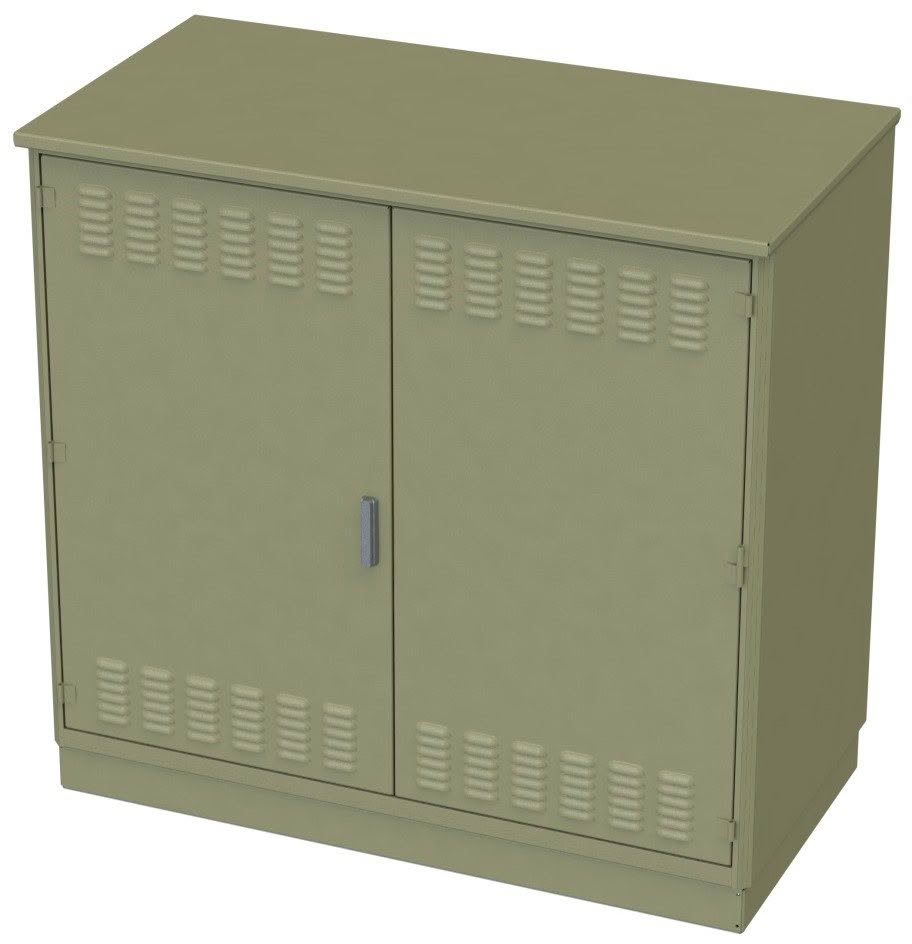

Natural Ventilation (Code ESITS02)
Door-mounted louver with filter foam allows passive airflow while minimising dust and contaminant ingress. Suitable for lower heat-load applications.

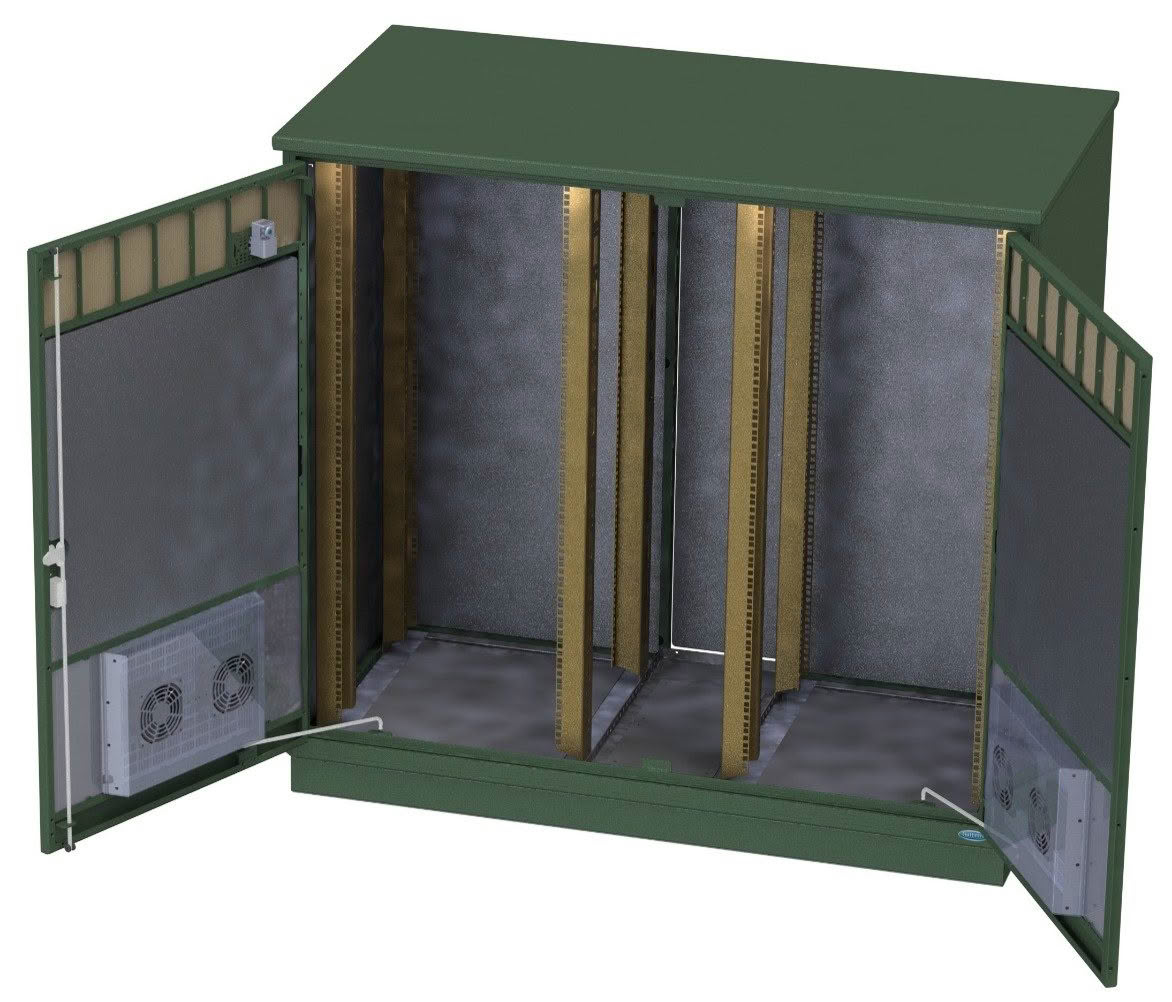

Forced Convection (Code ESDG03)
Thermostatically controlled fan system to actively manage internal temperatures for higher heat-generating equipment.
2.5mm marine-grade aluminium construction
UV-resistant powder coat finish
Double bay, 2-door configuration for easy equipment access
Secure locking system
Designed for harsh New Zealand outdoor conditions
5-Sided Internal Insulation for improved thermal stability and condensation control
100mm Aluminium Plinth for raised installation, improved drainage, and cable management access
Ideal for water & wastewater infrastructure, transport systems, energy networks, and telecommunications installations where durability, corrosion resistance and thermal performance are critical.
