Single door, 19″roadside-ITS cabinet, 740 W × 620 D × 1390 H, designed in accordance with NZTA ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502 for roadside ITS applications.
Features 19″ mounting rails, natural-vent front door louvres with filter foam, a three-point locking system with swing-handle padlock. An optional 100 mm aluminium plinth is available.
Cross-folded roof, manufactured from 2.5 mm marine-grade material with a durable Almond Ripple powder-coat finish aligned with AS/NZS 2312.1:2014 for atmospheric corrosion protection. Optional colours include Karaka Green (RAL 6015), Almond Ripple (RAL 1015), or T33 Smoke Blue (AS2700). An NZTA-approved anti-graffiti coating in accordance with NZTA S10 is also available.
Proven in service with NZTA through motorway projects.
| Depth | 620 |
|---|---|
| Width | 740 |
| Height | 1390 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features | Cross-folded roof, Document holder, SS chassis hinge blocks, 2.5 mm marine grade skin for 25+ year life with UVR PE powder coat finish, IP rating up to 66 is available subject to application |
This 19″ single-door roadside ITS cabinet is engineered for intelligent transport systems and fully complies with ITS-STND-CAB-202502 and ITS-SPEC-CAB-202502. Measuring 740 mm wide × 620 mm deep × 1390 mm high, it is equipped with 19″ mounting rails to support a broad range of ITS, networking, and control equipment.

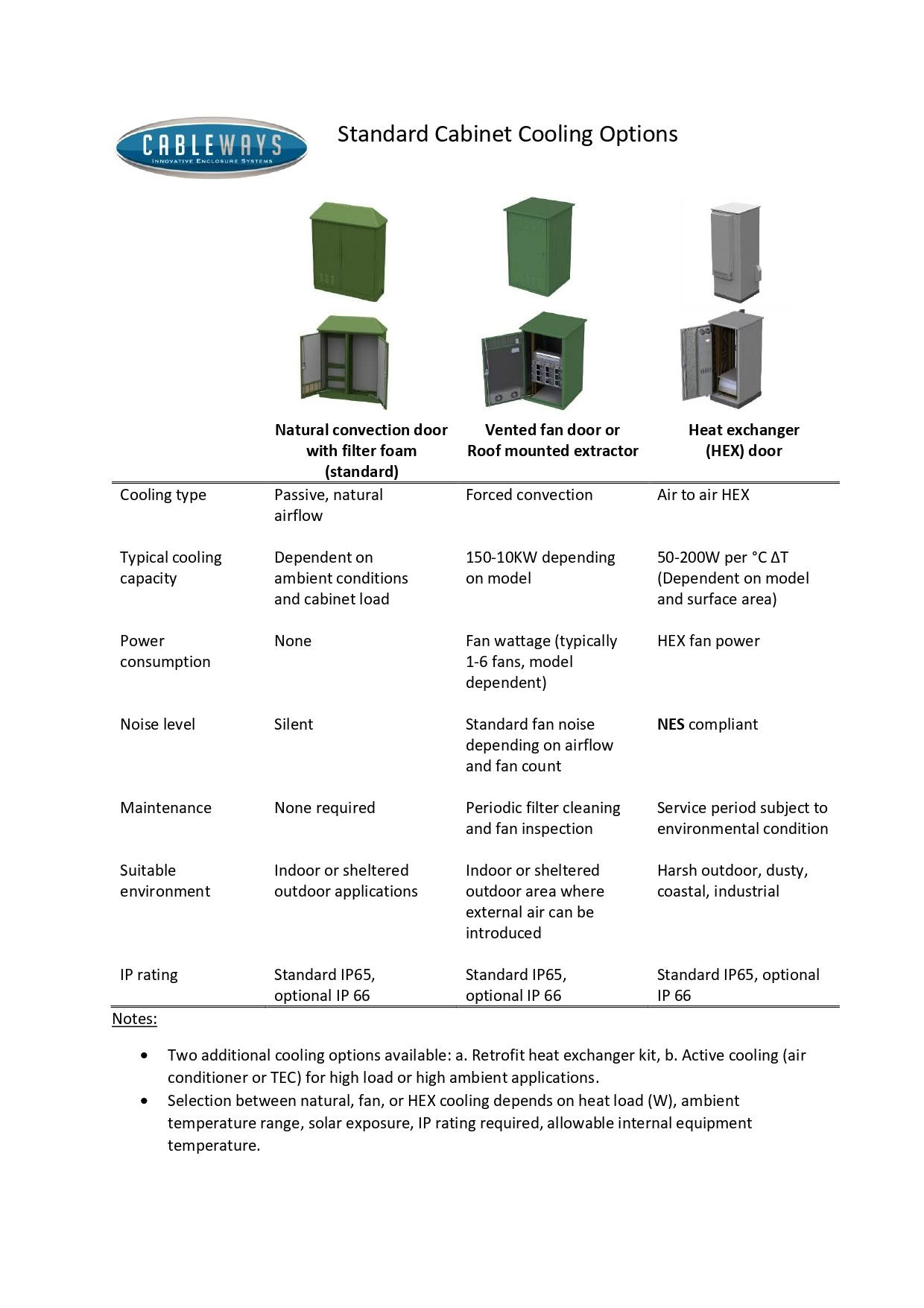

The door is supplied as standard with natural-convection ventilation and a filter-foam insert to assist passive airflow while limiting dust ingress. For installations requiring additional cooling, the cabinet can be fitted with an optional front-door fan. Security is enhanced with a three-point locking system paired with a swing-handle padlock, ensuring robust protection for critical equipment.
An optional 100 mm aluminium plinth is available for installations requiring extra height or improved cable routing.
Designed for durability, security, and ease of installation, this cabinet offers a fully compliant and flexible solution for roadside ITS deployments, including NZTA motorway project.
