Name: Single bay 2 door cabinet, ventilated, custom, 650W x 750D x 1650H - Cable Ways
SKU: OE1B2D6575165V (ESTDM01)

Single bay 2 door cabinet, ventilated, custom, 650W x 750D x 1650H

Outdoor single-bay, 2-door cabinet (650W × 750D × 1650H) with ventilated side design, engineered for reliable thermal performance in field installations.

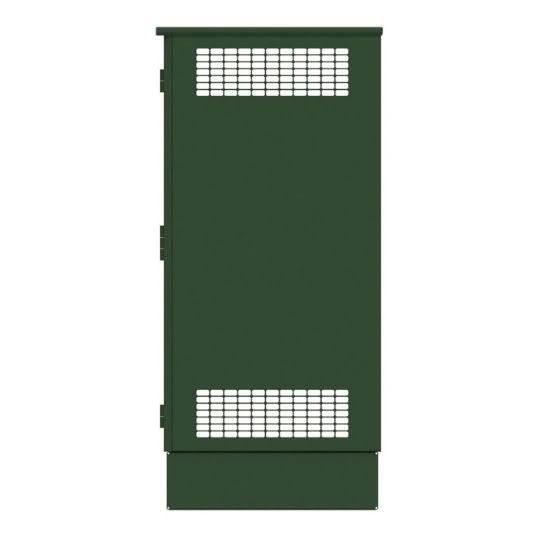

Side panels feature natural ventilation with top and bottom grille areas (168 × 528 mm), formed by 44 × 20 mm obround perforations to support continuous airflow.

Constructed from 2.5 mm marine-grade aluminium with UV-resistant powder coating, and available with an optional 200 mm aluminium plinth for elevated mounting.

Product Code: OE1B2D6575165V (ESTDM01)

SKU: OE1B2D6575165V (ESTDM01) Categories: Outdoor plant cabinets, Single Bay Tags: Infrastructure, Water

Width

650

Depth

750

Height

1650

Rack Units

Number of Bays

Single bay

Number of Doors

Door Specs

Plain door (no convection)

Locking System

Flush front lock, Three point locking system

Cabinet Family

EcoStar

Standard Features

SS chassis hinge blocks, 2.5 mm marine grade skin for 25+ year life with UVR PE powder coat finish, IP rating up to 66 is available subject to application

Additional Features

Ventilated side cabinet

Product description

This single-bay, 2-door outdoor cabinet (650W × 750D × 1650H) is designed for telecommunications, utilities, and infrastructure applications where passive cooling and durability are essential. Built from 2.5 mm marine-grade aluminium with a UV-resistant powder-coated finish, the enclosure delivers long-term performance in harsh outdoor environments, with a design life exceeding 25 years.

The cabinet incorporates naturally ventilated side panels to enhance airflow without the need for powered cooling systems. Each side includes top and bottom grille sections (168 × 528 mm), formed by 44 × 20 mm obround perforations. This configuration promotes effective heat dissipation through natural convection, helping to maintain stable internal temperatures for installed equipment while reducing maintenance requirements.

The dual front door design allows practical access for installation and servicing, secured with a flush front locking system. Stainless steel chassis hinge blocks and robust construction provide structural strength and resistance to corrosion, making the cabinet suitable for exposed environments across telecommunications, water, transport, and energy sectors.

For installation flexibility, the cabinet can be supplied with an optional 200 mm aluminium plinth, allowing elevation above ground level to improve cable management, drainage, and site integration.

Overall, this ventilated-side cabinet offers a reliable, low-maintenance enclosure solution where passive cooling, durability, and secure equipment housing are key requirements.
