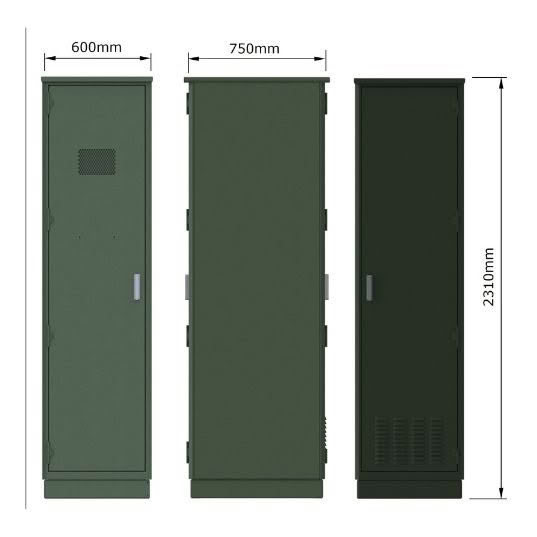

The Single Bay 2-Door Cabinet (600W × 750D × 2310H) is a high-capacity outdoor enclosure engineered for telecommunications, utilities, and infrastructure applications requiring effective thermal control and reliable equipment protection.

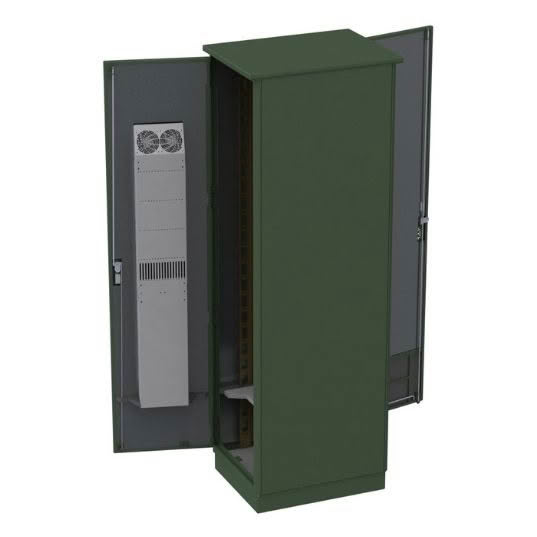

Designed with a single-bay configuration and two-door access, the cabinet allows efficient installation, organised cable management, and convenient maintenance. With approximately 47RU capacity, it provides ample space for mounting active and passive equipment.
Thermal management is a key feature of this cabinet, combining both passive and active cooling elements:
- Natural ventilation on the front door to support airflow

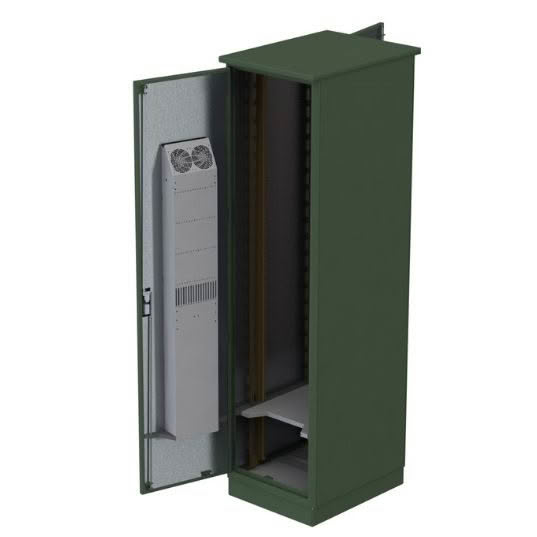

- Air-to-air heat exchanger (1 × 25W/°C) to regulate internal temperature without exposing equipment to external contaminants
- Rear door louvre with filtered foam to maintain clean airflow and reduce dust ingress
Security is provided through a swing handle keylock system, ensuring controlled access while maintaining ease of operation.
The cabinet is constructed from 2.5 mm marine-grade aluminium with UV-resistant powder coating, designed for long service life in harsh outdoor environments, with IP rating up to IP66 (application dependent) for protection against dust and moisture.
Optional features include:
- Aluminium plinth for elevated installation and improved cable entry
- 19″ mounting frame for standardised equipment integration
The combination of high capacity, advanced thermal management, and durable construction makes this cabinet a reliable solution for outdoor installations where temperature control and equipment protection are critical.
