The Single Bay 2-Door Cabinet (600W × 500D × 650H) is a compact outdoor enclosure specifically suited for cathodic protection systems, monitoring equipment, and remote infrastructure applications.

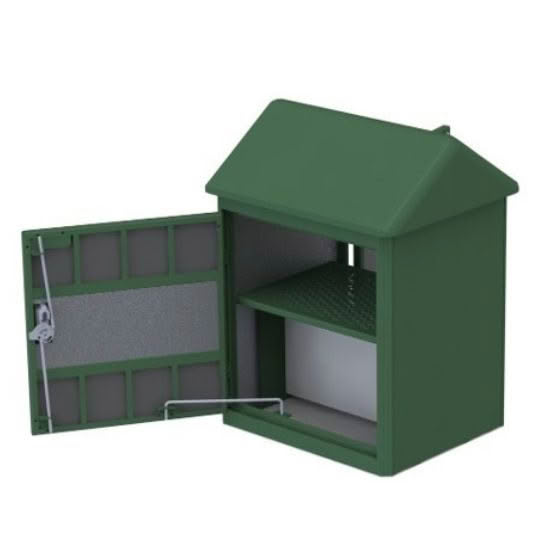

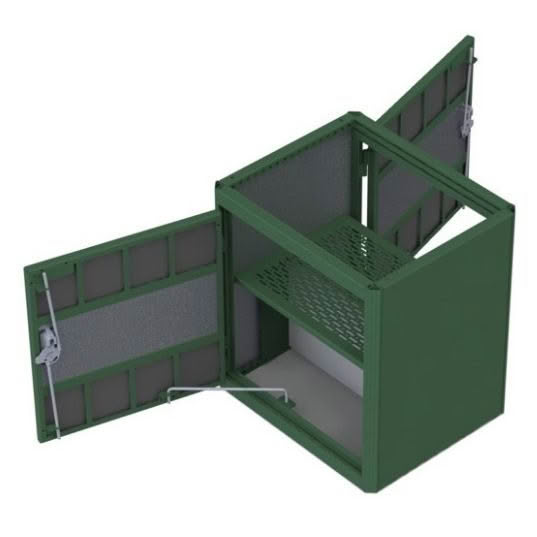

Designed with a single-bay configuration and two-door access, the cabinet allows efficient installation, organised cable management, and convenient maintenance within a compact footprint. With approximately 10RU capacity, it is ideal for housing control units, monitoring devices, and communication components.

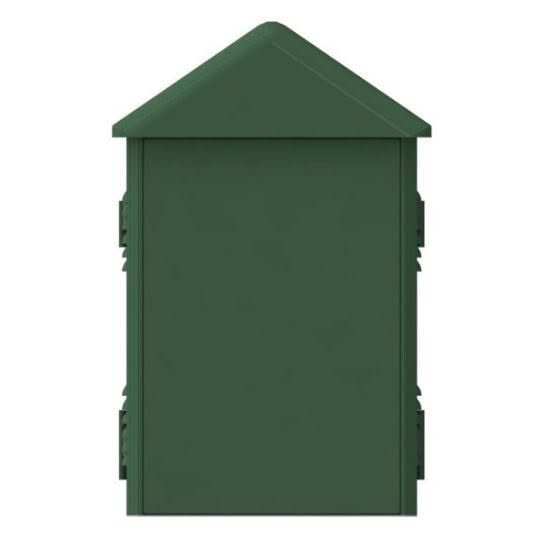

A key feature of this cabinet is its RF transparent roof, enabling effective transmission of wireless signals. This makes it particularly suitable for cathodic protection monitoring systems that require reliable communication without external antenna complexity.

Constructed from 2.5 mm marine-grade aluminium with UV-resistant powder coating, the cabinet is designed for durability and long service life in outdoor environments. Standard features include stainless steel chassis hinge blocks and a robust enclosure design suitable for harsh conditions.

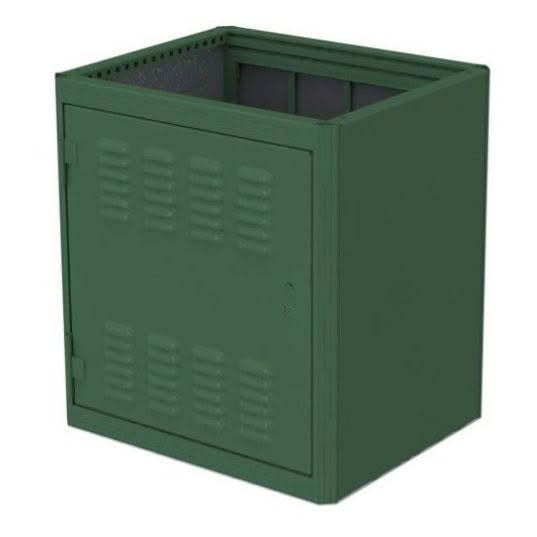

The cabinet utilises natural convection ventilation, supporting passive airflow to maintain internal temperature without additional power requirements.

Security is provided through a flush front locking system, ensuring equipment is protected while maintaining a clean external appearance.

With an IP rating up to IP66 (application dependent), the enclosure offers reliable protection against dust and moisture, making it suitable for deployment in utilities, energy networks, water systems, and remote infrastructure sites.

Its combination of compact size, RF transparency, and durable construction makes this cabinet a practical solution for cathodic protection applications requiring secure housing and consistent communication performance.
