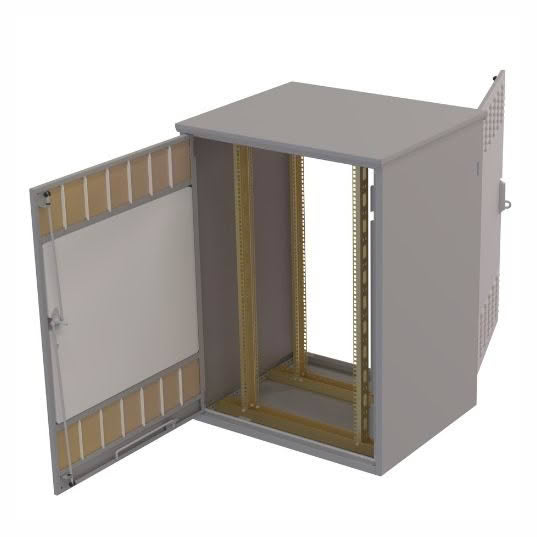

Compact and configurable double door outdoor equipment cabinet designed for telecommunications, utilities, and infrastructure applications. The Silver Star series supports 19″, 21″ (ETSI), or 23″ (EIA) equipment mounting with light or heavy-duty rail options, and thermal configurations including plain door, natural convection, or forced convection cooling.
Manufactured from marine-grade aluminium or optional 316 stainless steel, it provides a cost-efficient, quick-delivery solution for small sites, retrofit projects, and general outdoor equipment installations. Optional insulation, custom finishes, and configurable accessories are available to suit project requirements.
Other mounting configurations and cabinet sizes are available within the Silver Star series.
| Width | 650, 800 |
|---|---|
| Depth | 450, 650 |
| Height | 1100, 650, 900 |
| Rack Units | |
| Number of Doors | |
| Cabinet Mounting | Plinth Mounting |
| Equipment Mounting | 1 HD rail pair 19" EIA, 1 HD rail pair 21" EIA, 1 HD rail pair 21" ETSI, 1 HD rail pair 23" EIA, 1 Std rail pair 19" EIA, 1 Std rail pair 21" EIA, 1 Std rail pair 21" ETSI, 2 HD rail pair 19" EIA, 2 HD rail pair 21" EIA, 2 HD rail pair 21" ETSI, 2 HD rail pair 23" EIA, 2 Std rail pair 19" EIA, 2 Std rail pair 21" EIA, 2 Std rail pair 21" ETSI, Gear Tray |
| Door Specs | Forced convection with fan, Plain door (no convection), Natural convection with filter foam |
| Insulation | |
| Colour options | Almond Ripple, Base Material (Silver), Black Ripple, Ghost Grey Ripple, Karaka Green, Mossvale Sand |
| Cabinet Family |

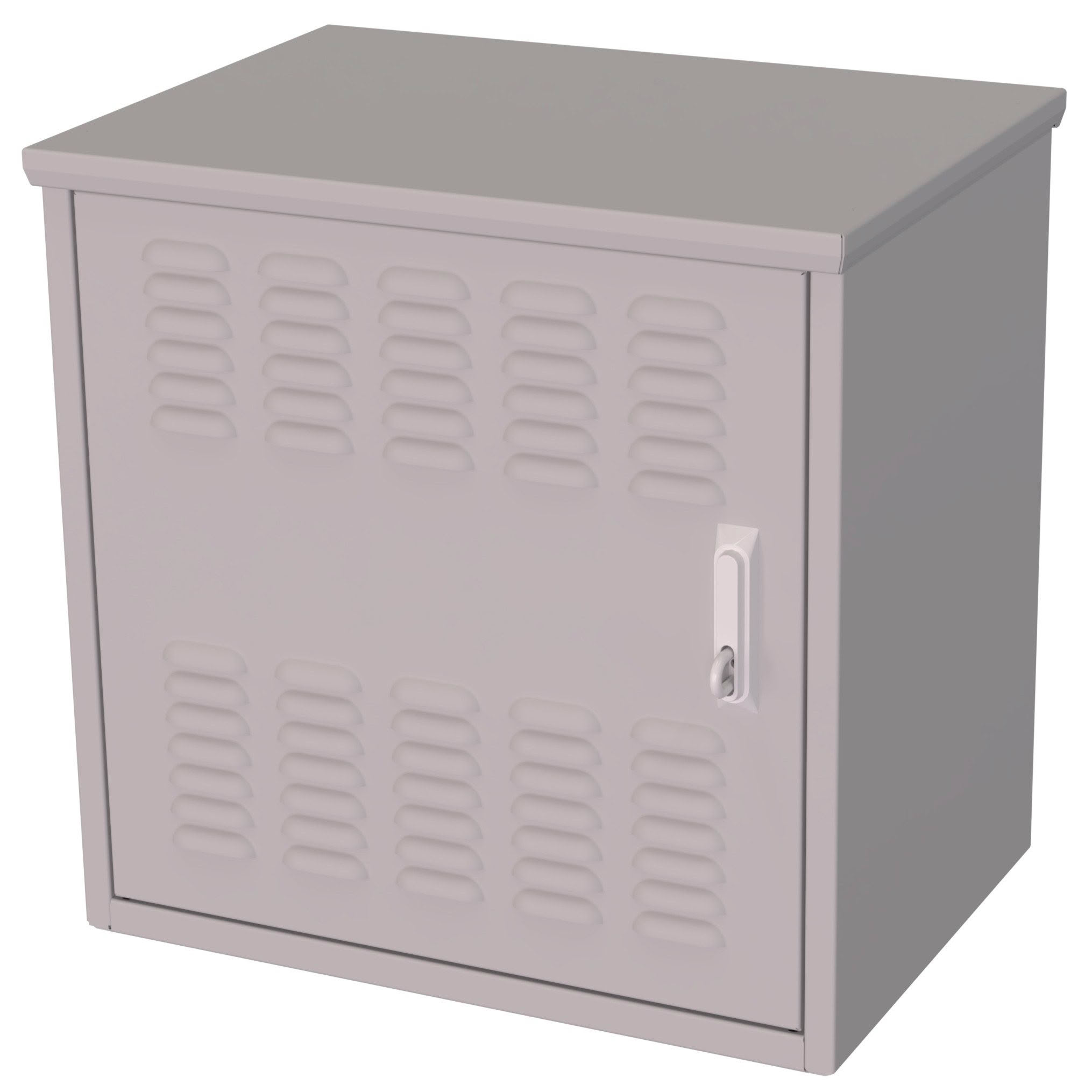

The Silver Star (SS) Double Door Outdoor Enclosure – Back Mounted is a compact and configurable outdoor cabinet solution designed for telecommunications, utilities, transport, monitoring, and infrastructure applications requiring reliable environmental protection and flexible equipment integration.
Designed for small sites, retrofit projects, and distributed network installations, the Silver Star series provides a practical and cost-efficient enclosure platform with fast delivery options and configurable features to suit a wide range of outdoor applications.
Manufactured from durable marine-grade aluminium or optional 316 stainless steel, the enclosure is designed to withstand demanding outdoor environments while providing long-term corrosion resistance and low maintenance performance. The cabinet is finished with UV-resistant polyester powder coating as standard, with multiple colour options and custom finishes available.
The enclosure supports:
Thermal management configurations include:
The standard cabinet design includes a secure three-point locking system, with locking options including flush front locking, swing handle padlock, or swing handle key lock arrangements.
Available in configurable dimensions and equipment layouts, the Silver Star series allows flexibility in cabinet size, mounting arrangement, thermal performance, and internal configuration to suit individual project requirements. Optional insulation and configurable accessories are available to further customise the enclosure function.
The Silver Star range is suitable for applications including:
Other mounting configurations including side mounted and plinth mounted versions are available within the Silver Star series.
