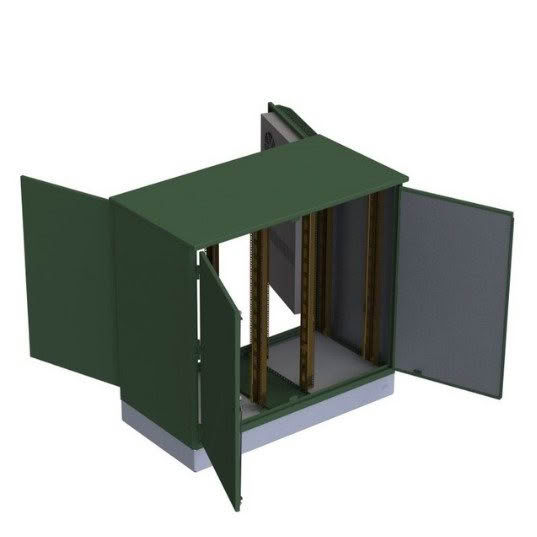

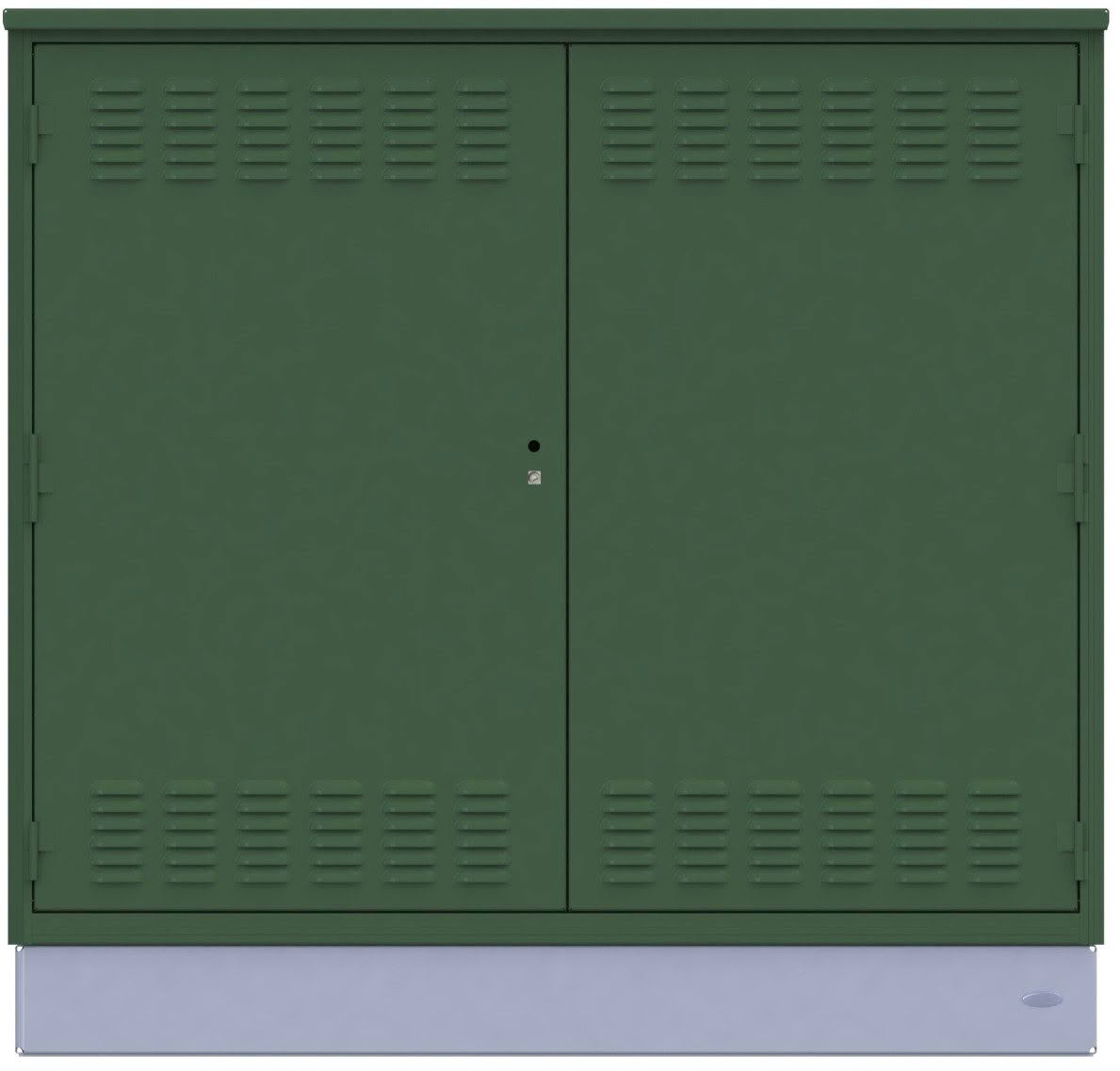

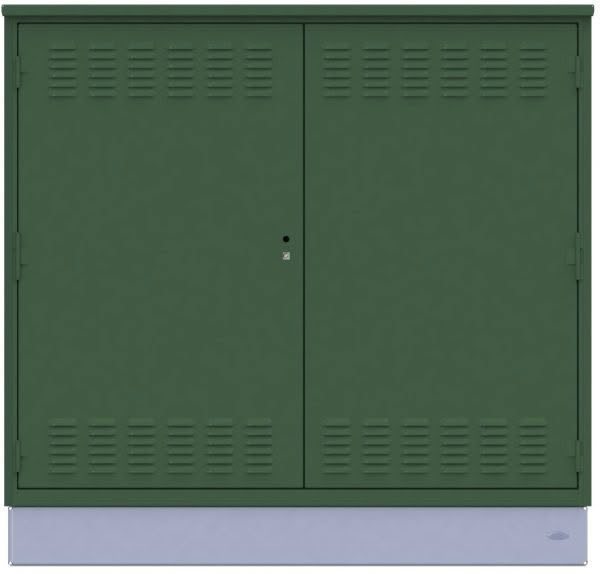

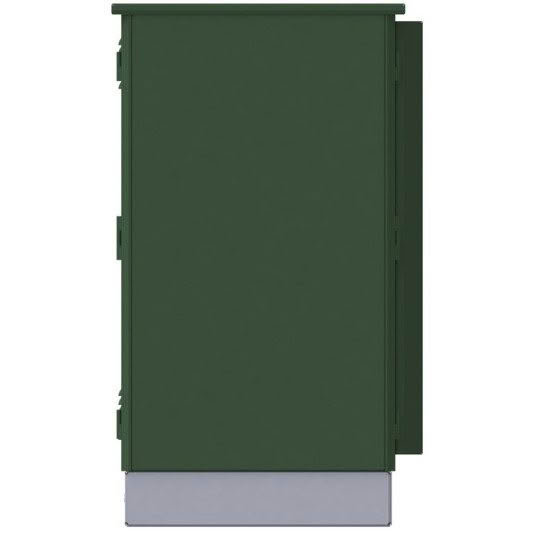

The Double Bay 4-Door Cabinet with Heat Exchanger (1500 W × 750 D × 1430 H) is a robust, free-standing outdoor enclosure engineered for secure and thermally managed equipment protection. Built with heavy-duty construction and finished for outdoor environments, this cabinet features a 150 mm HDG steel plinth that provides a strong base and facilitates battery installation.

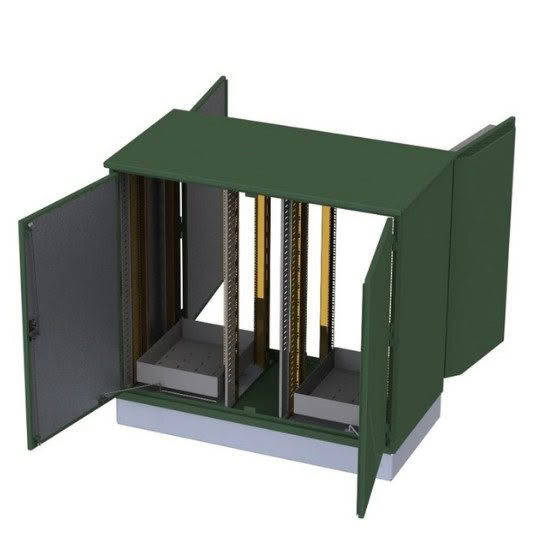

Designed with ample rack space, the enclosure includes 8 × 19″ mounting frames (4 per bay) and two battery shelves located at the bottom of each bay, supporting auxiliary power modules and other rack-mounted equipment. Thermal performance is enhanced by an air-to-air heat exchanger door equipped with 12 V DC fans, allowing efficient internal cooling without compromising environmental protection.

Security and environmental sealing are assured through four overlapping locking doors with a flush front and rear locking system, coupled with insulation to help maintain internal conditions. The cabinet also incorporates a cross-folded roof for added structural rigidity and weather resistance, and four vertical cable trays for neat cable routing and organisation.

This enclosure is ideal for telecommunications, data, energy, industrial and utility applications where organised equipment housing, effective cooling, and strong environmental protection are essential.
