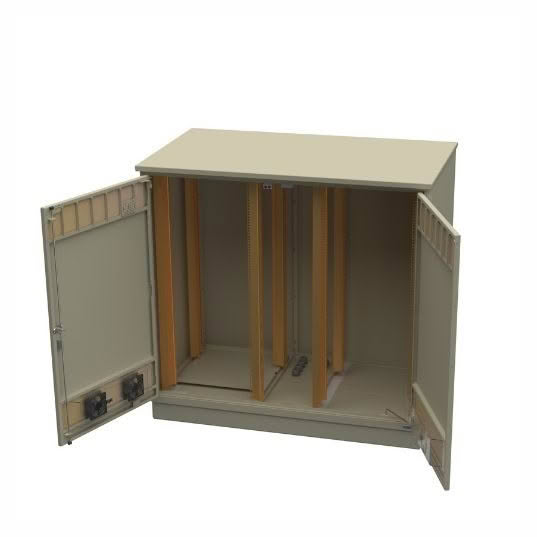

The Double Bay 2-Door Cabinet (1500W × 850D × 1432H) is a durable outdoor enclosure designed for telecommunications, power, and infrastructure installations.
It features independently adjustable 19” mounting rails, sealed centre access panels, and a robust cross-folded roof for weather protection.
Optional features include a thermostatically controlled fan kit and a base-supported sliding battery tray, with security enhancements such as a wired door switch and custom engraved ABS name plate available.
| Width | 1500 |
|---|---|
| Depth | 850 |
| Height | 1432 |
| Rack Units | |
| Number of Bays | |
| Number of Doors | |
| Door Specs | |
| Locking System | |
| Cabinet Family | |
| Standard Features |
The Double Bay 2-Door Cabinet (1500W × 850D × 1432H) is a robust outdoor enclosure engineered for telecommunications, electrical, and infrastructure applications requiring secure and organised equipment housing.
A cross-folded roof enhances weather protection and structural rigidity, making the cabinet suitable for outdoor deployments. Each bay is fitted with a pair of independently adjustable 19” mounting rails, allowing easy configuration for a wide range of equipment.
For cable management and maintenance access, the cabinet includes sealed centre access panels, helping maintain environmental protection while enabling controlled access between compartments.
Optional features are available to support specialised installations, including:
Fan kit (x2) with optional thermostat for temperature-controlled ventilation
Base-supported sliding battery tray (695 mm wide × 340 mm) for battery storage and servicing
Security door switch fitted and wired for monitoring cabinet access
The cabinet can also be customised with an engraved ABS name plate, providing clear asset identification for network operators and infrastructure managers.
This cabinet is well suited for telecommunications networks, transport systems, utilities infrastructure, and power installations, where secure equipment protection, modular configuration, and long-term durability are required.
